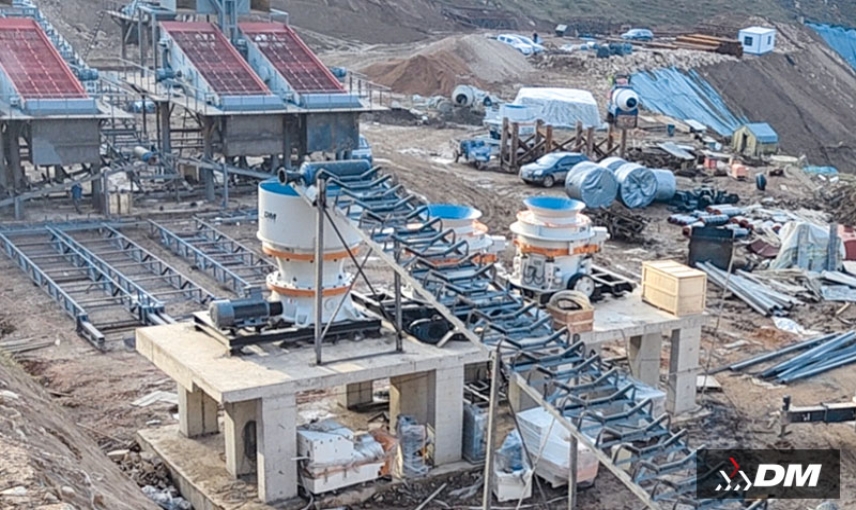

What is a Gyratory Crusher?

Definition of Gyratory Crusher

A gyratory crusher is a large-scale crushing equipment that crushes materials through the rotational and oscillating motion of a conical crushing head inside a fixed conical shell.

Core Structure

• Fixed Cone (Concave): A stationary conical shell lined with wear-resistant plates, forming the outer wall of the crushing chamber.
• Moving Cone (Mantle): A rotating conical crushing head connected to the main shaft, performing both rotational and eccentric oscillating motions simultaneously.
• Main Shaft & Eccentric Sleeve: The main shaft is driven to rotate by a motor and gear system, and the eccentric sleeve enables the moving cone to produce eccentric oscillation while rotating.

Working Principle

1. The motor drives the main shaft to rotate via a gear reducer, and the eccentric sleeve forces the moving cone to perform eccentric oscillation.
2. When the moving cone oscillates, the gap between it and the fixed cone alternately expands and contracts.
3. Materials fed from the top of the crushing chamber are gradually crushed by compression and bending forces when the gap narrows.
4. Crushed materials with particle sizes smaller than the discharge gap fall and are discharged from the bottom, realizing continuous crushing operations.

Key Characteristics

• Continuous Operation: Unlike jaw crushers, crushing and discharge are carried out simultaneously, resulting in high production efficiency.
• Suitable for Large-Scale Production: Specifically designed for industries such as mining and metallurgy, it can process large quantities of hard materials (e.g., iron ore, granite).
• Uniform Product Particle Size: The progressive crushing process in the conical crushing chamber ensures more consistent particle sizes of finished materials.

What is the difference between a cone crusher and a gyratory crusher?

This is a crucial question for distinguishing similar crushing equipment! The core difference between cone crushers and gyratory crushers lies in structural design, crushing principle details, and application scenarios, with the former focusing on secondary/tertiary crushing and the latter on primary crushing.

1. Structural Differences

• Cone Crusher: Compact overall structure, shorter main shaft, and a smaller crushing chamber (typically a steep cone angle). The eccentric sleeve is installed at the bottom of the main shaft, and the moving cone has a smaller swing amplitude.
• Gyratory Crusher: Large and tall structure, longer main shaft, and a larger crushing chamber (gentle cone angle). The eccentric mechanism is at the top of the main shaft, and the moving cone swings with a larger eccentricity.

2. Crushing Principle & Operation Differences

• Cone Crusher: Relies on the "compression + shear" combined force. The moving cone makes high-frequency, small-amplitude swings, achieving fine crushing of materials.
• Gyratory Crusher: Mainly uses "compression + bending" forces. The moving cone rotates while making low-frequency, large-amplitude eccentric swings, realizing coarse crushing of bulk materials.

3. Application Scenario Differences

• Cone Crusher: Used for secondary or tertiary crushing. Processes pre-crushed materials (e.g., from jaw/gyratory crushers) into uniform fine particles, suitable for medium-hard to hard materials in construction, road construction, etc.
• Gyratory Crusher: Specialized in primary crushing. Directly handles large, bulk raw materials (particle size up to 1-2 meters) in mining, metallurgy, etc., reducing them to manageable sizes for subsequent processing.

4. Key Performance Differences

• Production Capacity: Gyratory crushers have higher single-machine capacity (up to thousands of tons per hour) due to their large feeding port and continuous operation.
• Product Granularity: Cone crushers produce finer and more uniform particles (discharge size usually below 50mm), while gyratory crushers produce coarser particles (discharge size 100-300mm).

What is the difference between impact crusher and gyratory crusher?

This is a great question to distinguish two functionally distinct crushing equipment! The core difference between impact crushers and gyratory crushers lies in crushing mechanism, material adaptability, and application positioning—the former relies on impact force for medium-fine crushing, while the latter uses compression force for primary coarse crushing.

1. Crushing Mechanism Differences

• Impact Crusher: Uses high-speed rotating hammerheads or impact plates to strike materials. Materials are crushed by impact force, and then rebound to collide with the counterattack plate or other materials for secondary crushing (impact + collision combined action).
• Gyratory Crusher: Relies on the eccentric swing of the moving cone relative to the fixed cone. Materials are squeezed and bent in the gradually narrowing conical crushing chamber to achieve coarse crushing.

2. Material Adaptability Differences

• Impact Crusher: Suitable for medium-hardness materials (e.g., limestone, concrete, coal) with low abrasiveness. Not ideal for ultra-hard materials (e.g., granite, iron ore) as they cause rapid wear to hammerheads.
• Gyratory Crusher: Specialized in high-hardness, bulk raw materials (e.g., iron ore, basalt, granite). The compression-based crushing method tolerates high abrasiveness and large feed sizes (up to 1-2 meters).

3. Application Positioning Differences

• Impact Crusher: Serves as secondary or tertiary crushing equipment. Processes pre-crushed materials into fine, cubical particles, widely used in construction aggregates, road construction, and recycling of waste concrete.
• Gyratory Crusher: Dedicated to primary crushing. Directly handles large, unprocessed raw materials in mining, metallurgy, and other industries, reducing them to manageable sizes for subsequent secondary crushing.

4. Key Performance & Product Differences

• Production Efficiency: Gyratory crushers have higher single-machine capacity (thousands of tons per hour) for bulk materials; impact crushers have moderate capacity, suitable for medium-scale production.
• Product Shape: Impact crushers produce cubic particles with good grain shape (ideal for aggregates); gyratory crushers produce irregular, coarse particles (only for preliminary size reduction).
• Wear & Maintenance: Impact crushers have high wear on hammerheads/counterattack plates, requiring frequent replacement; gyratory crushers have wear-resistant liners with longer service life and lower maintenance frequency.

What are the advantages of a gyratory crusher?

Great question to highlight the core value of gyratory crushers! Their key advantages lie in high-efficiency primary crushing, strong adaptability to hard materials, and stable long-term operation, making them irreplaceable in large-scale mining and metallurgy scenarios.

1. Excellent Primary Crushing Capacity

• Handles extra-large feed sizes (up to 1–2 meters in diameter), directly processing bulk raw ores without pre-crushing.
• Continuous crushing operation (no intermittent gaps like jaw crushers) enables ultra-high single-machine capacity, reaching thousands of tons per hour.

2. Strong Adaptability to Hard/Abrasive Materials

• Relies on compression and bending forces for crushing, which is more resistant to high-hardness materials (e.g., iron ore, granite, basalt) than impact-based crushers.
• Wear-resistant liners (fixed cone concave and moving cone mantle) have long service life, reducing replacement frequency for abrasive materials.

3. Stable Operation & Low Operating Costs

• Symmetrical structural design and balanced eccentric mechanism minimize vibration during operation, ensuring stable running and low noise.
• Low energy consumption per unit of output—compression-based crushing is more energy-efficient than impact or shear crushing for large-scale coarse crushing.

4. Uniform Product Size & Easy Adjustment

• Gradual crushing in the conical chamber results in relatively uniform coarse particle sizes, providing high-quality feedstock for subsequent secondary crushing.
• Discharge gap can be flexibly adjusted to meet different particle size requirements for downstream processing.

5. Suitable for Large-Scale Industrial Applications

• Compact layout (vertical structure) saves floor space compared to other large primary crushers, adapting to limited space in mining sites or processing plants.
• Durable structure and mature design support long-term continuous operation, matching the high-volume production needs of mining, metallurgy, and building materials industries.
