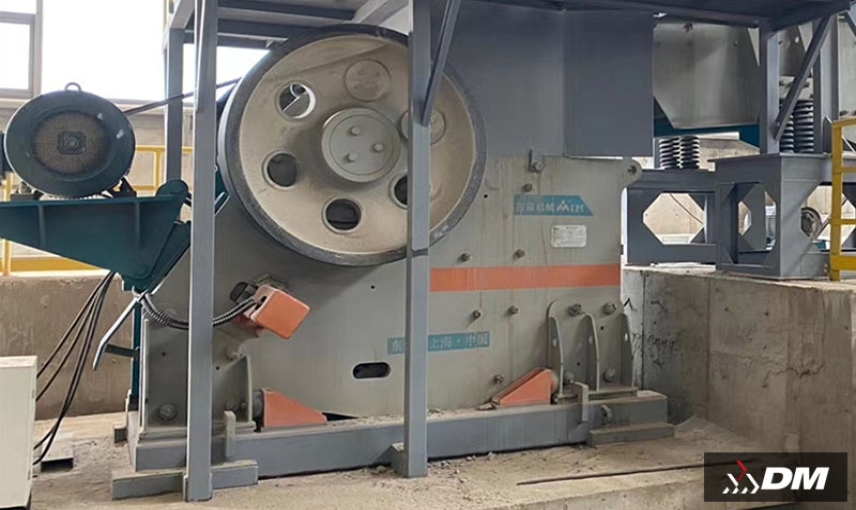

What Are the Three Types of Jaw Crushers?

　　In the crushing lines across mining, construction, building materials and other industrial sectors, jaw crushers have long held a core position and emerged as the primary crushing workhorse for bulk materials, thanks to their robust structure, high crushing ratio and reliable performance. Based on variations in structural design, motion characteristics and application scenarios, mainstream jaw crushers available on the market fall into three primary categories: simple pendulum jaw crushers, compound pendulum jaw crushers and combined pendulum jaw crushers. Each type features distinct design philosophies and application strengths, which are elaborated in detail below.

　　I. Simple Pendulum Jaw Crusher – The Classic, Stable "Veteran Model"

　　As the earliest-developed and most conventional member of the jaw crusher family, the simple pendulum jaw crusher derives its name from the simple circular-arc swing path of its movable jaw. Structurally, it is primarily composed of a frame, movable jaw, fixed jaw, eccentric shaft, connecting rod, toggle plate and auxiliary components. The eccentric shaft, serving as the core drive component, is motor-powered to drive the connecting rod in vertical reciprocation, which in turn pushes the toggle plate to actuate the movable jaw in periodic back-and-forth oscillation around the suspension shaft, thereby achieving compressive crushing of materials.

　　During operation, the movable jaw of the simple pendulum jaw crusher only exerts effective crushing force on the side adjacent to the fixed jaw. When the movable jaw swings away from the fixed jaw, crushed materials discharge by gravity. This motion mechanism ensures balanced utilization of the crushing chamber and stable transmission of crushing force, endowing the equipment with excellent adaptability to high-hardness ores such as granite and basalt. Meanwhile, the rational stress distribution of the structure results in uniform wear of wearing parts, extending equipment service life and reducing maintenance costs.

　　Nevertheless, the simple pendulum jaw crusher has inherent limitations. Its movable jaw features a small swing amplitude, translating to a narrow adjustment range for the discharge opening and relatively lower production efficiency compared to later-developed models. As such, it is more suited for small-to-medium-sized crushing lines or scenarios with modest efficiency requirements, and still maintains widespread use in legacy mining operations and small-scale building materials processing plants.

　　II. Compound Pendulum Jaw Crusher – The High-Efficiency, Flexible "Mainstream Solution"

　　To meet the escalating industrial demands for crushing efficiency, the compound pendulum jaw crusher was developed as an optimized iteration of the simple pendulum design. Its movable jaw follows a complex, compound trajectory combining both swing and translational motion, hence the name "compound pendulum". The key structural improvement lies in directly mounting the movable jaw on the eccentric shaft while eliminating the connecting rod assembly of the simple pendulum type. As the eccentric shaft rotates, the movable jaw executes eccentric motion around the shaft, and simultaneously achieves combined back-and-forth swing and vertical lift under the support of the toggle plate.

　　This compound motion trajectory grants the crusher multiple operational advantages. Firstly, the vertical lifting motion of the movable jaw generates a secondary grinding effect on materials, enhancing crushing efficiency and producing a more uniform product particle size. Secondly, the larger swing amplitude of the movable jaw accelerates material discharge, significantly boosting production throughput. Additionally, the compound pendulum jaw crusher boasts a more compact footprint, lighter weight and easier installation/mobility, aligning with the space-efficiency requirements of modern production lines.

　　Benefiting from its high efficiency and operational flexibility, the compound pendulum jaw crusher has become the mainstream equipment in the current crushing industry. It is widely deployed in large-scale mining projects, construction waste recycling systems, highway construction projects and other scenarios demanding high production efficiency and consistent crushing quality. Its material compatibility is exceptionally broad, capable of processing medium-hard materials (e.g., limestone, sandstone) as well as medium-to-high hardness ores (e.g., iron ore, copper ore).

　　III. Combined Pendulum Jaw Crusher – The Precision-Engineered "Advanced Variant"

　　The combined pendulum jaw crusher is a cutting-edge model evolved from the integration of simple and compound pendulum technologies. By incorporating a specialized transmission mechanism, it enables adjustable motion trajectories of the movable jaw tailored to specific crushing requirements, realizing a hybrid mode of "swing + translation" for precision-targeted crushing performance. Its core design principle lies in optimizing the connection between the eccentric shaft, connecting rod and toggle plate, allowing the movable jaw to exhibit differentiated motion characteristics across distinct crushing phases: a large swing amplitude for primary crushing at the feed inlet, and a reduced swing amplitude coupled with grinding action for fine crushing at the discharge end.

　　This precision motion control delivers unique performance benefits. First, it achieves an enhanced crushing ratio, enabling one-step reduction of large feed lumps to fine-grained products, which eliminates subsequent crushing stages and cuts overall production line costs. Second, it offers precise adjustment of product particle size, with customizable motion parameters to satisfy the specific particle size requirements of diverse industrial applications. Third, it features superior energy efficiency: the optimized motion trajectory perfectly matches material crushing mechanics, minimizing energy waste and maximizing energy utilization rates.

　　The combined pendulum jaw crusher is ideally suited for applications requiring stringent control over crushing precision and energy consumption, such as precision casting sand processing, non-metallic mineral deep processing, and cement raw meal crushing. While its sophisticated structure results in a slightly higher manufacturing cost compared to traditional models, its long-term operational cost savings and superior crushing performance yield outstanding cost-effectiveness, positioning it as a key development direction for jaw crusher technology in the future.

　　Conclusion: Scientific Selection to Maximize Equipment Value

　　Simple pendulum, compound pendulum and combined pendulum jaw crushers represent distinct evolutionary stages of jaw crusher technology, each catering to specific operational needs. In practical applications, equipment selection must be guided by a comprehensive analysis of critical factors including material hardness, feed particle size, product specifications, production capacity and site constraints. For high-hardness material processing prioritizing equipment stability, the simple pendulum model is the dependable choice; for projects focused on high efficiency and operational flexibility, the compound pendulum type is the optimal selection; for applications demanding precision crushing and energy efficiency, the combined pendulum variant delivers unmatched performance.

　　As crushing technology continues to innovate, the range of jaw crusher models will further expand. Nevertheless, these three mainstream types will remain indispensable in the crushing industry, underpinned by their mature technology and proven reliability. Through scientific selection, proper operation and regular maintenance, jaw crushers will continue to provide robust support for the productivity and development of diverse industrial sectors.

　　Which is better jaw crusher or hammer crusher?

　　In mining, construction waste recycling, and building materials processing, jaw crushers and hammer crushers are both core crushing equipment. Jaw crushers dominate primary crushing, while hammer crushers excel in secondary fine crushing. The question "which is better" is misleading—equipment value depends on alignment with specific operational needs. This guide compares the two from structural principles, core performance, and application scenarios to support informed selection.

　　1. Core Differences: Structure & Crushing Mechanism

　　Performance variances between jaw and hammer crushers originate from their distinct designs and crushing mechanisms, defining their roles in the crushing circuit.

　　1.1 Jaw Crusher: Compression Crushing for Primary Stages

　　Key components: Fixed jaw, movable jaw, eccentric shaft, toggle plate. Crushing mechanism: Motor-driven eccentric shaft rotates to swing the movable jaw around its suspension point, creating a compressive/bending force with the fixed jaw to break materials.

　　Key advantages: Deep, wide crushing chamber accepts feed up to 1m+; rigid metal transmission ensures stable crushing force, resilient to material hardness fluctuations. Ideal for reducing large raw ores/waste to medium-grain feed for downstream processing—whether simple pendulum (stable) or compound pendulum (high-efficiency) models.

　　1.2 Hammer Crusher: Impact Crushing for Fine Crushing

　　Key components: Rotor, hammers, grates. Crushing mechanism: High-speed rotor drives hammers to impact materials; crushed particles collide with the shell liner (secondary crushing) and pass through grates once meeting size requirements.

　　Key advantages: High-frequency impact enables rapid material refinement; grinding action during crushing ensures uniform finished product. Designed for efficient fine crushing rather than primary processing.

　　2. Multi-Dimensional Comparison

　　MetricJaw CrusherHammer Crusher

　　Crushing Ratio4–8 (medium-low); for volume reduction10–30 (high); one-step fine crushing

　　Particle Size ControlAdjustable jaw gap; limited precision; higher needle-flake contentGrate replacement; high precision; regular particle shape

　　Material AdaptabilityHandles materials ≤160MPa (granite, basalt, iron ore); resistant to impuritiesIdeal for materials ≤80MPa (limestone, shale, gangue); hammers wear rapidly on hard materials

　　Energy ConsumptionHigher no-load power; stable unit energy consumption (advantageous for hard materials)Lower startup power; energy spikes on hard materials (1.5x+ unit consumption vs jaw crusher)

　　Maintenance CostWear parts (jaw plates, toggle plates): 3–6 month lifespan; low replacement costWear parts (hammers, grates): 1–2 month lifespan (≤15 days for hard materials); high replacement/ labor costs

　　CapacityUp to 1000t/h; optimal for primary crushingUp to 500t/h; optimal for secondary fine crushing

　　3. Application Scenarios & Selection Criteria

　　3.1 Prioritize Jaw Crushers When

　　Primary crushing high-hardness ores (granite, basalt) or metal ores

　　Feeding large-scale production lines (annual output ≥1Mt) for downstream cone crushers/sand makers

　　Operating in harsh environments (field mines, waste landfills) requiring low failure rates

　　3.2 Prioritize Hammer Crushers When

　　Fine crushing medium-low hardness materials (limestone sand, gangue, construction waste)

　　Equipping small-medium lines (township plants, small waste stations) for cost-effective short-process crushing

　　Producing uniform particles (road base aggregate, cement raw meal)

　　3.3 Synergistic Application

　　For large-scale lines: Jaw crusher (primary crushing, 800mm→100–200mm) → Hammer crusher (secondary fine crushing, 100–200mm→finished product). This combination leverages the jaw crusher’s large-feed capacity and the hammer crusher’s fine-crushing efficiency, ensuring stable, high-output operations.

　　4. Conclusion

　　Jaw crushers are the "stable foundation" of primary crushing; hammer crushers are the "efficient tool" for fine crushing. No single model is universally superior—selection hinges on four core factors: material hardness, feed size, product specifications, and production scale.

　　Misapplication (e.g., hammer crushers on hard ore, jaw crushers for fine crushing) leads to high costs or low efficiency. With precise scenario matching, both crushers deliver maximum value for crushing operations.
