Stationary Crushers

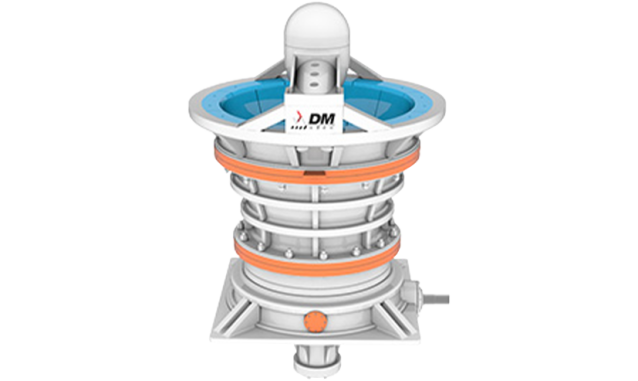

DXF series rotary crusher

Product Name:

DXF series rotary crusher

  • Feed Particle Size:≤1300mm
  • Processing Capacity:2015-8895t/h
  • Machinery Weight:subject to reality

Product Details

DXF

DXF series gyratory crusher Compared with traditional gyratory crusher, DXF gyratory crusher has higher crushing efficiency, low cost of use, easy maintenance and adjustment, and can provide users with intelligent super-capacity coarse crushing solutions.

DXF series gyratory crusher is a stationary crushing and screening equipment independently designed by our company and combined with the actual situation at home and abroad. The unique design of the deep cavity crushing chamber and the long feeding port of the machine, the feeding is smooth, and the continuous crushing is realized. Less wear and tear, low cost of use. It is widely used in mining, stone mining, highways (railways) and bridges, urban construction waste disposal and many other fields.

Product Parameters

ModelSize of feed  opening
 (mm×mm)
Max.feed size   (mm)Capacity    (t/h)Motor power  (kw)Closed side setting(mm)Dimension(mm)
DXF426510659002015-2875400140-1753940x4170x6900
DXF5065127010502400-2940400150-1754460x4430x7610
DXF5475137011502890-3490450150-2004930x4925x8410
DXF6275157513502895-4335450150-2005580x5250x9090
DXF6089152513004200-5810630165-2305590x5445x10470
DXF60110152513005540-88951250175-2506200x5940x11390

Field of Application

Quarry Aggregate Processing

Quarry Aggregate Processing

Construction Waste Recycling & Reuse

Construction Waste Recycling & Reuse

Urban Road Reconstruction

Urban Road Reconstruction

Mine Waste Rock and Tailings Treatment

Mine Waste Rock and Tailings Treatment

Highway and Railway Construction

Highway and Railway Construction

Coal Mine Crushing and Screening

Coal Mine Crushing and Screening

Metal Ore Crushing

Metal Ore Crushing

Product Advantage

simg

Unique crushing chamber feed inlet design

The unique design of deep cavity crushing chamber and long feeding port enables smooth feeding and continuous crushing, large processing capacity, high crushing efficiency, large crushing ratio, uniform particle size of finished products, convenient maintenance and other advantages, less wear of lining plate , the use of low cost.

01

simg

Balance Cylinder System

The balance cylinder system has the function of preventing the main shaft from jumping. In the case of overload, the main shaft can be automatically lowered to avoid the impact of the main shaft jumping on the equipment when the equipment enters the oversized material, so as to ensure safe and stable operation.

02

simg

High Strength Extra Heavy Duty Rack

High-strength super-heavy frame, integral body shaft and high-performance bearings ensure longer service life and safer and more reliable operation under various harsh working conditions.

03

simg

Very wide range of applications

The machine has a very wide range of applications, such as mining and crushed stone processing, finished aggregates, machine-made sand, reuse of construction waste, building materials and cement, roads and bridges, and highways.

04
