What Are the Crusher Equipment in Quarries?

As a core supply source of raw materials such as construction aggregates and road construction stones, the core link in the production process of a quarry is "crushing processing" — large ore blocks (with a particle size often reaching 1-3 meters) mined need to be refined into finished aggregates that meet requirements (such as 5-10mm, 10-20mm, 20-30mm) through multiple crushing processes. Different quarries have different ore types (such as limestone, granite, basalt), hardness differences, and finished product requirements, so they need to match different types of crusher equipment. Currently, the commonly used crusher equipment in quarries is mainly divided into three categories: "coarse crushing equipment", "medium and fine crushing equipment", and "shaping equipment". Each type of equipment has its own characteristics and jointly forms a complete crushing production line in the quarry.

I. Coarse Crushing Equipment: The "First Checkpoint" in the Quarry Crushing Process

The core task of coarse crushing equipment is to crush large raw ore (with a particle size of more than 500mm) mined from the quarry into coarse aggregates of 100-300mm, laying the foundation for subsequent medium and fine crushing processes. Due to the high hardness and large particle size of raw ore, coarse crushing equipment must have the characteristics of "high compressive strength, large crushing ratio, and impact resistance". The commonly used coarse crushing equipment in quarries mainly includes jaw crushers and gyratory crushers.

1. Jaw Crusher: The "Main Force" of Coarse Crushing in Quarries

The jaw crusher is the most widely used coarse crushing equipment in quarries. Its working principle is based on "compression crushing" — through the periodic opening and closing of the movable jaw and fixed jaw, it exerts compressive force on large ore blocks entering the crushing chamber to crush them to the required particle size. The core advantages of this equipment are:

• Large crushing ratio: The crushing ratio can reach 4-8, which can easily handle hard rocks such as granite and basalt with a particle size of more than 1000mm, meeting the coarse crushing needs of most quarries;
• Simple and reliable structure: The core components only include the movable jaw, fixed jaw, eccentric shaft, etc., without a complex transmission system, resulting in low failure rate and convenient maintenance. Quarry operators can complete daily maintenance after simple training;
• Strong adaptability: Different models (such as PE-600×900, PE-900×1200) can be selected according to the quarry's production capacity requirements (50-1000 tons per hour), which can not only adapt to the simple production line of small quarries but also integrate into the intelligent process of large quarries;
• Controllable cost: The equipment purchase cost and maintenance cost are relatively low, the wearing parts (such as jaw plates) are easy to replace, and the service life can reach 3-6 months, which is suitable for long-term continuous operation of quarries.

However, the particle shape of the finished product of the jaw crusher is relatively irregular (with a high content of needle-like particles), so it is only used in the coarse crushing link, and the subsequent medium and fine crushing equipment is needed to optimize the particle shape.

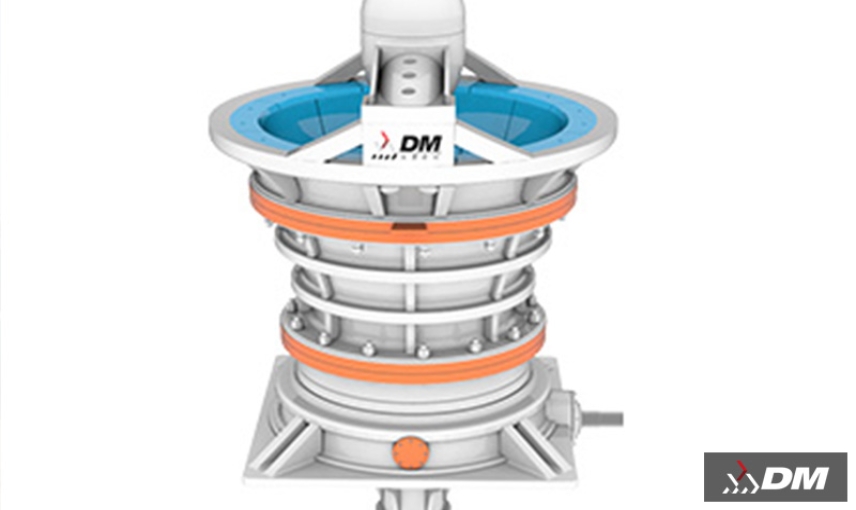

2. Gyratory Crusher: The "Efficient Choice" for Large Quarries

Gyratory crushers are mainly used in large quarries with a daily processing capacity of more than 10,000 tons. Their working principle is similar to that of jaw crushers (both are compression crushing), but through the design of "conical crushing chamber + eccentric shaft rotation", higher crushing efficiency is achieved. Compared with jaw crushers, its advantages are reflected in:

• Large processing capacity: The processing capacity of a single equipment can reach 1000-5000 tons per hour, which is suitable for large-scale production of large quarries, reducing the number of equipment and floor space;
• More stable operation: Adopting the "laminated crushing" method, the ore is evenly stressed in the crushing chamber, avoiding local overload, resulting in small equipment vibration, low noise,
