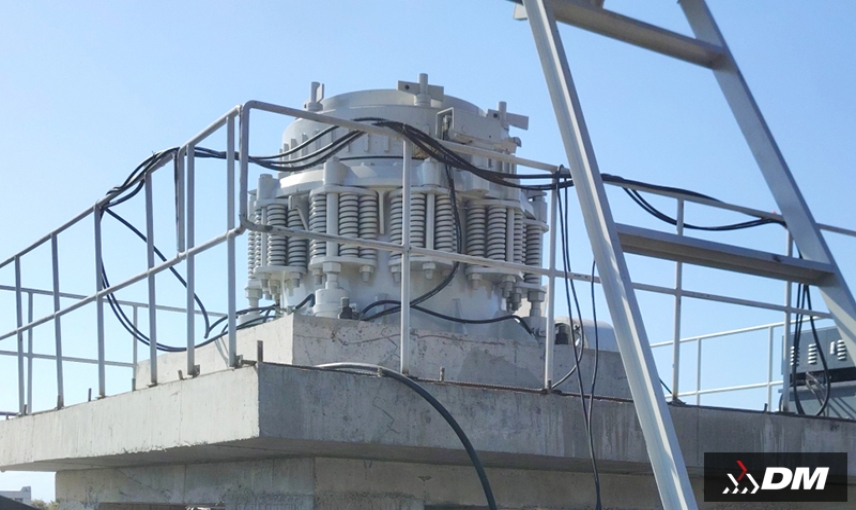

Maintaining Hydraulic Oil Cleanliness: The Key to Cone Crusher Maintenance

In heavy industries such as mining and construction, the cone crusher, as a core crushing equipment, its stable operation directly determines production efficiency and cost control. The hydraulic system, serving as the "power core" of the cone crusher, is responsible for driving key actions such as the swing of the crushing cone and the adjustment of the discharge opening. Its performance is closely related to the cleanliness of the hydraulic oil. Practice shows that over 70% of hydraulic system failures are caused by hydraulic oil contamination. Therefore, maintaining the cleanliness of hydraulic oil has become a core part of cone crusher maintenance.

1. Hazards of Hydraulic Oil Contamination to Cone Crushers

Once impurities are mixed into the hydraulic oil, it will cause multiple damages to the hydraulic system and the overall operation of the cone crusher, specifically manifested as follows:

• Aggravated Component Wear: Solid particles in the hydraulic oil (such as metal chips, dust, and seal residues) will cause a "grinding effect" in the matching gaps of precision components like hydraulic pumps, hydraulic cylinders, and control valves, leading to valve core jamming, pump body wear, and shortened component service life. For example, internal wear of the hydraulic pump will directly result in insufficient pressure, reducing the swing force of the crushing cone and significantly lowering crushing efficiency.
• Clogging of Key Oil Paths: Fine impurities are prone to clog hydraulic oil filters, throttle valve holes, and oil passage channels, causing obstruction to hydraulic oil circulation. If the oil path for adjusting the discharge opening is clogged, it will be impossible to adjust the gap in a timely manner according to the material particle size requirements, resulting in substandard particle size of finished materials or equipment shutdown due to overload.
• Damage to Oil Performance: When water, air, or chemical pollutants are mixed into the hydraulic oil, its lubricity, anti-foaming property, and oxidation resistance will be damaged. Water can cause emulsification of the hydraulic oil, reducing the oil film strength and causing component rust; air, on the other hand, can lead to cavitation, resulting in system pressure fluctuations, abnormal noise, and vibration, which affects the stability of the crushing process.
• Triggering Chain Failures: If hydraulic system failures are not handled in a timely manner, they may spread to other components. For instance, the failure of control valves caused by hydraulic oil contamination may lead to excessive extrusion of materials by the crushing cone, resulting in more serious mechanical failures such as spindle bending and frame deformation, increasing maintenance costs and downtime.

2. Main Sources of Hydraulic Oil Contamination

Identifying the sources of contamination is the premise for targeted prevention and control. The contamination of cone crusher hydraulic oil mainly comes from three aspects:

1. External Invasion Contamination: Cone crushers mostly operate in open-air or dusty environments. Dust, sand, and rainwater can easily enter the oil through the hydraulic oil tank's breather port, oil filling port, and damaged seals. For example, if no filtering device is used during oil filling or the oil tank cover is not tightly sealed, impurities will be directly mixed in.
2. Internal Generation Contamination: During the operation of the hydraulic system, components themselves will generate pollutants. Such as metal debris from the friction of hydraulic pumps and motors, rubber particles from aging and falling off seals, and sludge and acidic substances generated by the high-temperature oxidation of hydraulic oil. These internal pollutants will continue to accumulate with the oil circulation.
3. Residual Initial Contamination: When the equipment leaves the factory, the internal part of the hydraulic system may have residual impurities from the manufacturing process, such as iron filings, welding slag, and molding sand. During maintenance, if the pipelines are not cleaned properly when disassembled and assembled, or the replaced components themselves are contaminated, it will also lead to initial contamination of the hydraulic oil.

3. Core Measures to Maintain Hydraulic Oil Cleanliness

Combining the sources of contamination and the operating characteristics of the equipment, it is necessary to take the following key measures from the whole process of "prevention - filtration - monitoring - maintenance" to maintain the cleanliness of hydraulic oil:

1. Strictly Control External Contamination Invasion

• When adding oil, a refueling device with a fine filter element (filtration accuracy not lower than 10μm) must be used to avoid directly pouring the oil from the oil barrel into the oil tank. The cleanliness of the new oil must be tested before injection to ensure it meets the equipment requirements (usually NAS 8 grade or higher).
• Regularly check the integrity of the oil tank cover seal and the breather valve filter element of the hydraulic oil tank. The breather valve filter element should be replaced every 3 months to prevent dust from entering through the breather port. A dust cover should be installed at the oil tank filling port, and it should be tightly closed in time after each oil filling.
• Install protective covers on parts of the equipment that are vulnerable to dust and rain (such as hydraulic valve groups and pipeline interfaces). Regularly clean the debris on the surface of the protective covers to prevent the seals from accelerating aging due to external contamination.

2. Strengthen the Filtration Capacity of the Hydraulic System

Reasonable configuration of filtering devices is the key to removing impurities in the oil. It is necessary to select filters with appropriate accuracy according to the flow rate and pressure of the hydraulic system and maintain them regularly:

• Install a coarse filter element (filtration accuracy 20-40μm) at the oil suction port of the hydraulic pump to prevent large particles of impurities from entering the pump body and causing wear. Install a high-pressure fine filter element (filtration accuracy 5-10μm) in the pressure oil path to protect precision components such as control valves and hydraulic cylinders. Install a return oil filter element (filtration accuracy 10-15μm) in the return oil path to intercept pollutants generated during system operation.
• Replace the filter element regularly in strict accordance with the equipment manual requirements, usually every 500-800 hours. If the operating environment is dusty, the replacement cycle should be shortened. When replacing the filter element, the inside of the filter housing should be cleaned to prevent residual impurities from falling into the oil.
• For cone crushers operating under long-term high load, an additional bypass filtration system (accuracy 3-5μm) can be installed to achieve 24-hour continuous filtration, further reducing the content of fine particles in the oil and extending the service life of the hydraulic oil.

3. Establish a Regular Monitoring and Maintenance Mechanism

• Regularly test the cleanliness of hydraulic oil: Extract oil samples every 3 months and use a particle counter to test the oil contamination level (NAS grade). If it exceeds NAS 10 grade, the hydraulic oil must be replaced immediately and the system cleaned. At the same time, test indicators such as oil viscosity, water content, and acid value to determine whether the oil has deteriorated.
• Regularly clean the hydraulic oil tank: Clean the oil tank thoroughly every 1-2 years. After draining the old oil, use a clean wipe to clean the sludge and impurities on the inner wall of the oil tank. If necessary, rinse it with a special cleaning agent (compatible with hydraulic oil), and inject new oil after drying.
• Standardize maintenance operations: When maintaining the hydraulic system, it should be carried out in a clean environment. The pipelines and joints should be wrapped with clean plastic cloth before disassembly and assembly to prevent impurities from entering. When replacing components such as seals and filter elements, the cleanliness of the components should be checked to ensure there is no oil stain or impurity.

4. The Value of Clean Hydraulic Oil for Cone Crusher Operation and Maintenance

Adhering to maintaining the cleanliness of hydraulic oil can not only reduce hydraulic system failures but also bring multiple values to the efficient operation and maintenance of cone crushers:

• Extend Equipment Service Life: Clean hydraulic oil can reduce component wear, extending the service life of key components such as hydraulic pumps and control valves by 30%-50% and reducing the overall failure rate of the equipment.
• Improve Production Efficiency: The stable operation of the hydraulic system can ensure that the swing frequency of the crushing cone and the adjustment accuracy of the discharge opening meet the requirements, avoiding production interruptions caused by fault shutdowns and improving the effective operation rate of the equipment.
• Reduce Operation and Maintenance Costs: It reduces the number of fault repairs, lowering the costs of spare parts replacement and maintenance labor. At the same time, clean hydraulic oil has a slow oxidation rate, which can extend the oil change cycle (usually by 50%-100%), reducing the procurement cost of hydraulic oil.

In conclusion, the cleanliness of hydraulic oil is the "lifeline" of the hydraulic system performance of cone crushers and a core point of equipment maintenance work. Only by incorporating hydraulic oil cleanliness management into the key links of daily operation and maintenance, through scientific prevention and control, precise filtration, and regular monitoring, can the continuous and stable operation of the cone crusher be ensured, providing a reliable guarantee for industrial production.
