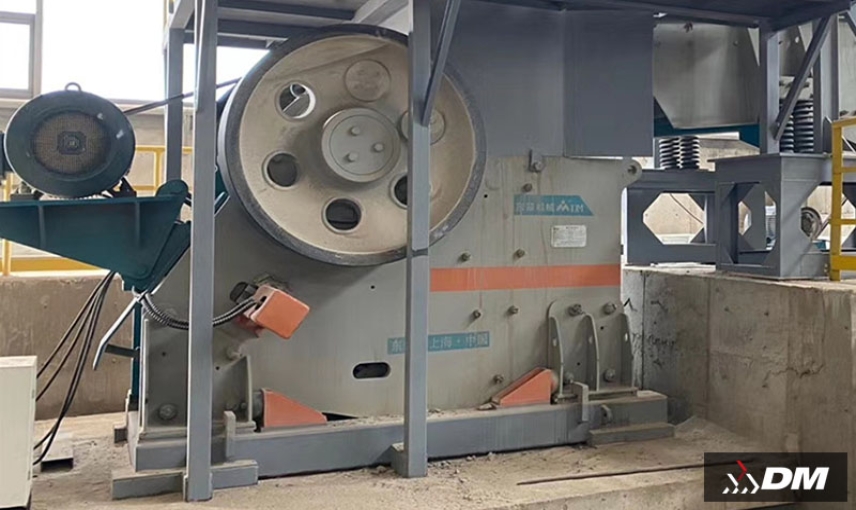

Jaw Crusher: An Indispensable Part of the Entire Mining Machinery

I. Mining Machinery System and the Positioning of Jaw Crushers

Mining machinery is a core equipment cluster that supports the exploitation and processing of mineral resources, covering multiple links such as crushing, mineral processing, transportation, and screening, forming a complete industrial chain from "raw ore mining" to "finished ore output". In this system, crushing equipment is the primary link - when raw ore is mined from underground or open-pit mines, it is often large-sized material with a particle size of tens or even hundreds of centimeters, which cannot directly enter subsequent mineral processing (such as flotation, magnetic separation) or deep processing processes. It must be refined to a required particle size through crushing equipment. With the characteristics of "strong coarse crushing capacity, stable structure, and wide adaptability", jaw crushers become the "first checkpoint" in the mining crushing link, undertaking the core task of primary crushing of raw ore. They are the key link connecting mining exploitation and subsequent processing, and their performance directly determines the efficiency and stability of the entire mining production process. Therefore, they have become an irreplaceable basic equipment in the mining machinery system.

II. Core Advantages of Jaw Crushers: Adapting to Complex Mining Working Conditions

Mining working environments are characterized by "high material hardness, complex working conditions, and strong demand for continuous operation". Traditional crushing equipment often struggles to operate stably for a long time. However, jaw crushers, with their unique structural design and working principle, are perfectly adapted to mining scenarios. Their main advantages are reflected in the following three aspects:

1. Super Strong Coarse Crushing Capacity to Deal with High-Hardness Ores

Raw ores mined in mines (such as granite, basalt, iron ore, etc.) generally have high hardness (Mohs hardness 6-9) and large differences in particle size, which place extremely high requirements on the compressive strength and crushing ratio of crushing equipment. Jaw crushers adopt the principle of "compression crushing". Through the periodic opening and closing of the movable jaw and fixed jaw, they exert huge compressive force on materials, which can crush large ores with a particle size of more than 1000mm into coarse crushed materials of 100-300mm. The crushing ratio can reach 4-8, far exceeding the coarse crushing capacity of impact crushers and cone crushers. At the same time, their crushing chamber adopts a "deep cavity V-shaped" design, which increases the material capacity space. Combined with jaw plates made of wear-resistant manganese steel, they can not only withstand the impact and wear of high-hardness ores but also reduce the probability of material blockage, ensuring stability during continuous operation and meeting the demand for "24-hour non-stop production" in mines.

2. Simple and Reliable Structure with Low Maintenance Costs

Most mining operation sites are located in remote areas, and maintenance personnel and spare parts supply are often limited. Therefore, "easy maintenance and low failure rate" have become important considerations for mining machinery. Jaw crushers have a relatively simple structure. The core components only include the movable jaw, fixed jaw, eccentric shaft, flywheel, etc. There is no complex transmission or hydraulic system, and there are few fault points. Operators can complete daily inspection and maintenance after simple training. For example, when the jaw plate needs to be replaced due to long-term wear, it can be quickly replaced by loosening the fixing device through adjusting bolts. The whole process only takes 1-2 hours, which is much shorter than the 4-6 hours of maintenance time for cone crushers. In addition, their key components (such as eccentric shafts and bearings) are made of high-strength alloy materials, with a service life of 5000-8000 hours, which greatly reduces the cost of spare parts replacement and downtime loss for mining enterprises.

3. Wide Adaptability and Capability of Cooperating with Multiple Equipment

The mining production process does not rely on the independent operation of a single piece of equipment, but requires the cooperation of multiple pieces of equipment to form a coherent process of "crushing - screening - medium and fine crushing - mineral processing". As the core equipment in the coarse crushing link, jaw crushers can be seamlessly connected with a variety of subsequent mining machinery: the coarse crushed materials after crushing can be directly transported to cone crushers for medium and fine crushing, or after screening by vibrating screens, the materials that meet the particle size requirements can be sent to mineral processing equipment; for mobile mining operation scenarios, jaw crushers can also be integrated into mobile crushing stations, forming integrated equipment with conveyors and screens, moving with the mining face to operate, reducing the cost of raw ore transportation. This characteristic of "flexible adaptation and cooperative operation" enables it to be integrated into mining production lines of different scales and processes, becoming a "universal core equipment" in the mining machinery system.

III. Key Impact of Jaw Crushers on Mining Production

As the "first-process equipment" in the mining crushing link, the operating status of jaw crushers directly affects the efficiency, cost, and safety of the entire mining production line. Their key roles are mainly reflected in three dimensions:

1. Determining Production Efficiency: Avoiding "Front-End Blockage and Back-End Idleness"

In the mining production process, the crushing link is the "front-end entrance". If the coarse crushing capacity of the jaw crusher is insufficient or it shuts down frequently due to faults, raw ore will accumulate at the mining site and cannot be transported to subsequent links in a timely manner, resulting in the dilemma of "front-end material blockage and back-end equipment idleness". Taking an iron ore mine with a daily processing capacity of 5,000 tons as an example, a jaw crusher with a processing capacity of 600 tons per hour can ensure that raw ore continuously enters the crushing process, and subsequent equipment such as cone crushers and magnetic separators can operate at full load; if the processing capacity of the jaw crusher is only 400 tons per hour, 1,200 tons of raw ore cannot be crushed in a timely manner every day, leading to 4 hours of daily idleness of subsequent equipment and an annual production loss of up to 144,000 tons, which directly affects the economic benefits of mining enterprises.

2. Controlling Finished Product Quality: Laying the Foundation for Subsequent Processing

The crushing effect of jaw crushers (such as the particle size uniformity and impurity content of coarse crushed materials) directly affects the quality of subsequent medium and fine crushing and mineral processing links. If the particle size of coarse crushed materials fluctuates greatly (for example, some materials are still 500mm, and some are less than 50mm), it will lead to uneven feeding of the cone crusher, resulting in problems of "over-crushing" or "insufficient crushing" and increasing the difficulty of the mineral processing link; if the jaw plate of the jaw crusher is severely worn but not replaced in a timely manner, it will cause metal impurities (such as worn jaw plate debris) to be mixed into the crushed materials, affecting the concentrate grade during mineral processing. Therefore, a stably operating jaw crusher can output coarse crushed materials with uniform particle size and few impurities, providing a guarantee for the efficient operation of subsequent links and indirectly improving the quality and output of finished ore in the mine.

3. Ensuring Operation Safety: Reducing Mining Safety Risks

The safety risk of mining operations is relatively high, and equipment failures (such as equipment overload and component breakage caused by material blockage) are important causes of safety accidents. Jaw crushers effectively reduce the safety risks in the mining crushing link through multiple safety designs: first, they are equipped with an "overload protection device". When uncrushable materials such as metal blocks enter the crushing chamber, the shear pin will break automatically to avoid damage to core components such as the eccentric shaft and jaw plate; second, they adopt a "sealed crushing chamber" to reduce the leakage of dust and noise during the crushing process, improve the working environment, and protect the health of operators; third, an "emergency stop button" is set
