Dongmeng: Impact Crusher - High-Efficiency Crushing Solution

I. Dongmeng Impact Crusher: Born for High-Efficiency Crushing

In fields such as construction aggregate production, construction waste recycling, and mining, "high-efficiency crushing" and "high-quality finished products" are the core goals pursued by enterprises. As a leading enterprise in China's mining machinery industry, Dongmeng, relying on years of technical accumulation and market practice, has developed a series of impact crusher products. With the core advantages of "high crushing efficiency, excellent finished product shape, and stable and reliable operation", it provides customized high-efficiency crushing solutions for customers in different industries. Whether processing medium and low-hardness limestone and marble, or recycling construction waste such as concrete blocks and bricks, Dongmeng impact crushers can break through the efficiency bottlenecks of traditional equipment and achieve the comprehensive value of "quality improvement, output increase, and cost reduction", becoming the core equipment of many enterprises' crushing production lines.

II. Core Technical Advantages: Building High-Efficiency Crushing Capacity

The high-efficiency performance of Dongmeng impact crushers stems from a number of technological innovations in structural design, core components, and intelligent control, which are specifically reflected in the following four dimensions:

1. Optimized Crushing Chamber Design, Improving Crushing Efficiency and Finished Product Quality

Dongmeng impact crushers adopt the patented design of "deep cavity arc-shaped crushing chamber". Compared with the traditional linear crushing chamber, it effectively increases the material capacity space, reduces the probability of material blockage, and at the same time extends the residence time of materials in the crushing chamber to ensure sufficient impact and grinding between materials and blow bars. Its crushing chamber is divided into a three-stage structure of "coarse crushing area, medium crushing area, and fine crushing area", which can automatically adjust the crushing strength according to the material hardness and particle size: the coarse crushing area performs preliminary impact crushing on large materials through high-speed rotating blow bars; the medium crushing area realizes secondary crushing by the rebound effect of the impact plate; the fine crushing area accurately controls the finished product particle size by adjusting the gap between the blow bars and the impact plate. This multi-stage crushing process enables the crushing ratio to reach 10-15, far exceeding the industry average, and the finished product has a cubic shape with a needle-like content of ≤5%, fully meeting the requirements of high-quality construction aggregates (such as aggregates for C60 concrete).

2. High-Strength Core Components, Extending Equipment Service Life

The wear resistance and strength of crushing components directly determine the operation stability and maintenance cost of impact crushers. Dongmeng has carried out special upgrades for core components: first, the blow bars adopt a composite material of "high chromium alloy + wear-resistant welding wire surfacing", with a hardness of up to HRC60-65. Compared with ordinary high manganese steel blow bars, the service life is extended by 2-3 times, and it can continuously process 50,000-80,000 tons of materials without replacement; second, the impact plates and liners are made of "Mn18Cr2" ultra-high manganese steel, which has excellent impact toughness and wear resistance, and can withstand repeated impacts of medium and low-hardness materials without deformation; third, the main shaft is made of 40CrNiMoA high-strength alloy steel, which has undergone quenching and tempering treatment and precision machining, greatly improving the bending strength and fatigue resistance, and can withstand high-speed rotation and impact loads for a long time, avoiding major failures such as main shaft breakage.

3. Intelligent Control System, Realizing Automation and Precise Regulation

To meet the automation needs of modern production lines, Dongmeng impact crushers integrate a "PLC intelligent control system + human-machine interface": operators can monitor equipment operation parameters (such as motor speed, crushing chamber temperature, feed rate, finished product particle size) in real time through the touch screen, and remotely adjust key parameters such as blow bar speed and impact plate gap according to production needs without on-site manual operation; the system has "overload protection" and "fault early warning" functions. When uncrushable materials such as metal blocks enter the crushing chamber, the motor automatically reduces speed and triggers an alarm to avoid damage to the blow bars and main shaft; at the same time, the system can record equipment operation data (such as cumulative operation time, blow bar wear, fault records), generate production reports and maintenance reminders, helping enterprises achieve refined management and reduce manual inspection costs and downtime losses.

4. Lightweight and Modular Design, Adapting to Various Application Scenarios

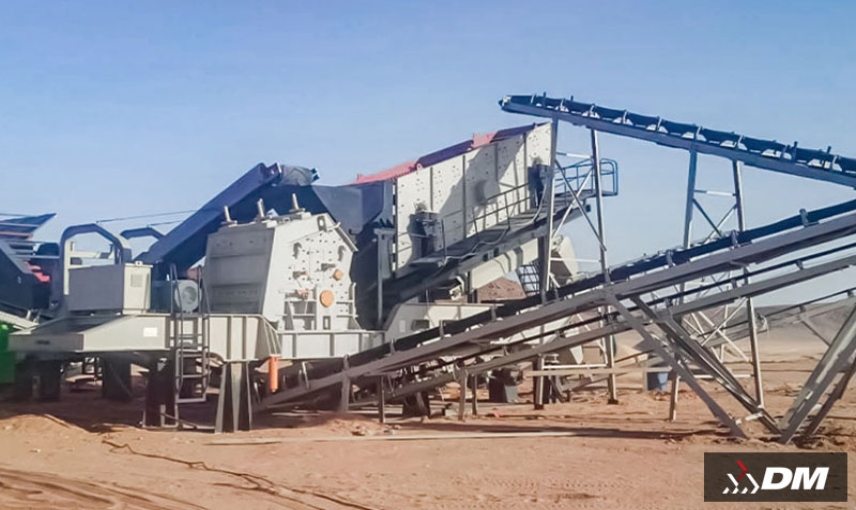

In response to the site and production capacity needs of different customers, Dongmeng impact crushers adopt a "modular structure" design. Core components (such as crushing unit, transmission unit, and control system) can be independently disassembled and assembled, facilitating transportation, installation, and maintenance. For mobile crushing scenarios, Dongmeng can integrate the impact crushing module into a mobile crushing station, combined with vibrating feeders, conveyors, screens and other equipment to form an integrated mobile crushing production line, which can be directly stationed at construction waste treatment sites or mining faces, saving material transportation costs; for fixed production lines, its lightweight body design (15% lighter than traditional equipment) can reduce the plant load-bearing requirements and reduce infrastructure investment. In addition, Dongmeng can also provide multiple models such as PF-1010, PF-1214, and PF-1315 according to customer production capacity requirements (50-500 tons per hour) to achieve "customization on demand".

III. Industry Solutions: Covering Crushing Needs in Multiple Fields

Based on the crushing characteristics of different industries, Dongmeng provides targeted solutions for customers to ensure that impact crushers exert maximum value:
