Mobile Track Crushers and Screen

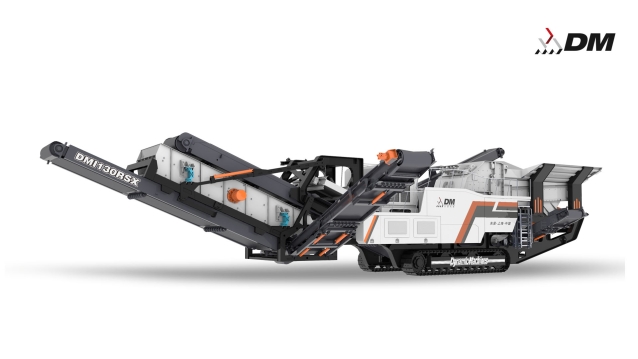

Tracked mobile impact crusher all in one machine

Product Name:

Tracked mobile impact crusher all in one machine

  • Feed Particle Size:≤650mm
  • Processing Capacity:80-380t/h
  • Machinery Weight:48-65t

Product Details

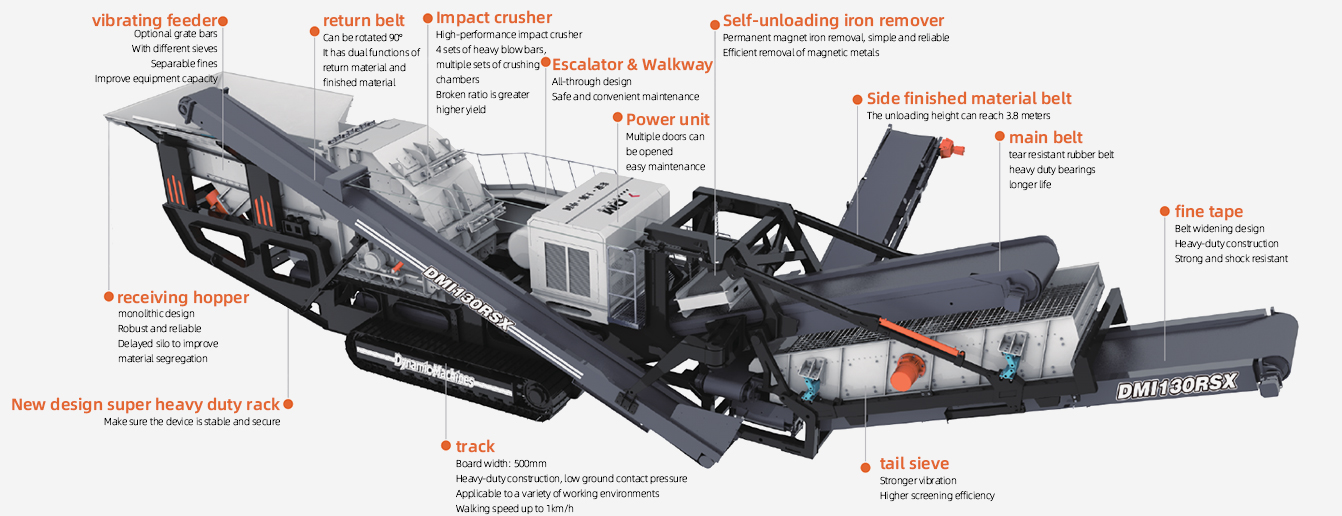

2.Mobile-counterattack-all-in-one-machine

Mobile counterattack all-in-one machine. The whole machine is equipped with a grading screen and a recycling system. The equipment can replace different forms of counterattack hammers according to the types of crushed materials.

Hydraulic adjustment of the discharge port and hydraulic auxiliary opening of the cover are convenient for equipment maintenance and repair. The crushing and screening functions are integrated into one, which greatly improves the work efficiency. The working mode is flexible and can be produced independently.

Product Parameters

ModelDMI100RSXDMI100RSXHDMI130RSXDMI130RSXHDMI160RSXDMI160RSXH
Capacity(tph)80 - 22080 - 220150 - 300150 - 300180 - 360180 - 360
Crusher power(kw)132 - 160132 - 160200 - 250200 - 250250 - 280250 - 280
Max. Feed size(mm)500500550550600600
Engine power(kw)932809336093420
External power(kw)218 - 246218 - 246280 - 330280 - 330310 - 340310 - 340
Transport size(L×W×H, M)17×3.75×3.817×3.75×3.819.5×3.75×3.819.5×3.75×3.819.5×3.75×3.819.5×3.75×3.8
Weight(tons)545659616163

Field of Application

Quarry Aggregate Processing

Quarry Aggregate Processing

Construction Waste Recycling & Reuse

Construction Waste Recycling & Reuse

Urban Road Reconstruction

Urban Road Reconstruction

Mine Waste Rock and Tailings Treatment

Mine Waste Rock and Tailings Treatment

Highway and Railway Construction

Highway and Railway Construction

Coal Mine Crushing and Screening

Coal Mine Crushing and Screening

Metal Ore Crushing

Metal Ore Crushing

Product Advantage

simg

Work efficiency

Heavy-duty feeder with complete pre-screening grate, solid waste treatment operations can pre-screen and discharge part of the waste, improving work efficiency.

01

simg

Intelligent wireless remote control

Using intelligent wireless remote control crawler walking technology, a single person can remotely operate the upper and lower flatbed trailers, which can quickly realize transition operations. The whole machine is equipped with a grading screen and a recycling system.

02

simg

Flexible working mode

Hydraulic adjustment of the discharge port and hydraulic auxiliary opening of the cover are convenient for equipment maintenance and repair. The crushing and screening functions are integrated into one, which greatly improves the work efficiency. The working mode is flexible and can be produced independently.

03

simg

Replaceable counterattack hammer

The equipment can replace different forms of counterattack hammers according to the types of crushed materials. The whole machine has a compact structure, a high degree of automation, low site requirements, and meets the national road transportation requirements.

04
