Mobile Track Crushers and Screen
Tracked Conveyor

Product Name:

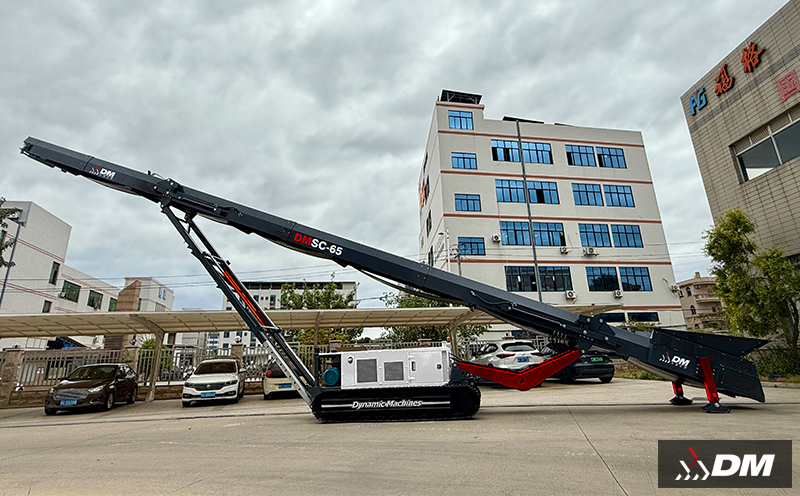

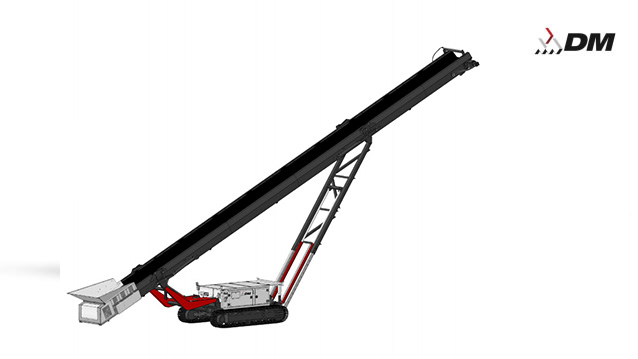

Tracked Conveyor

  • Processing Capacity:400tph
  • Machinery Weight:1.5t

Product Details

Shanghai Dongmeng crawler mobile station is professionally developed for mining, sand and aggregate processing, construction waste recycling and other working conditions. Adopting crawler self-propelled design with dual power options of diesel and electric drive, it features flexible transition, no infrastructure required and put into operation on arrival. It can realize high-efficiency crushing, screening and multi-grade finished aggregate production, being an intelligent and efficient overall solution for on-site operation.

Product Parameters

Tracked Conveyor Parameters
Length 20 m
Belt Width 1000 mm (plain belt)
Drive Type Diesel-Hydraulic
Discharge Height (at 25°) 9 m
Stockpile Capacity (at 25° & 37° angle of repose) 1300 m³
Capacity 400 TPH
Adjustment Functions Hydraulic conveyor angle adjustment, hydraulic feed-in height adjustment, variable speed control
Transport Feature Hydraulic fold over for transport
Power Unit
Engine (Tier 3) WEICHAI WP3.2, 37.5kW (50Hp)
Engine (Tier 4f / Stage V) Deutz D2.9 L4, 36.4kW
Fuel Tank Capacity 150 L
Working Angle (°) Length (m) Width (m) Height (m) Discharge Height (m) Stockpile (m³)
18° 19.74 2.3 7.6 6.9 606
20° 19.50 2.3 8.15 7.5 780
22° 19.32 2.3 8.70 8.0 945
24° 19.00 2.3 9.25 8.55 1132

Field of Application

Quarry Aggregate Processing

Quarry Aggregate Processing

Construction Waste Recycling & Reuse

Construction Waste Recycling & Reuse

Urban Road Reconstruction

Urban Road Reconstruction

Mine Waste Rock and Tailings Treatment

Mine Waste Rock and Tailings Treatment

Highway and Railway Construction

Highway and Railway Construction

Coal Mine Crushing and Screening

Coal Mine Crushing and Screening

Metal Ore Crushing

Metal Ore Crushing

Product Advantage

simg

Dual Power Options, Strong & Reliable Performance

It offers two power solutions (Weichai / Deutz diesel engines) to meet different emission standards, with an optional 30kW electric drive system for flexible adaptation to all working conditions, whether in remote mines or urban construction sites.

01

simg

Tracked Mobility, No Infrastructure Required

The self-propelled crawler chassis allows free movement and rapid transition on-site without the need for hoisting or fixed installation, significantly reducing preparation time and engineering costs.

02

simg

Highly Customizable, Adaptable to Diverse Needs

A wide range of optional configurations is available, including full-length skirting, adjustable conveyor angles, chevron belts, and water dust suppression systems, enabling tailored solutions for various application scenarios.

03

simg

Durable & Efficient, Built for Continuous Operation

Designed for heavy-duty applications with robust components, the conveyor ensures stable and long-lasting performance, supporting high-efficiency material handling to reduce operational costs.

04
