Stationary Crushers

Product Name:

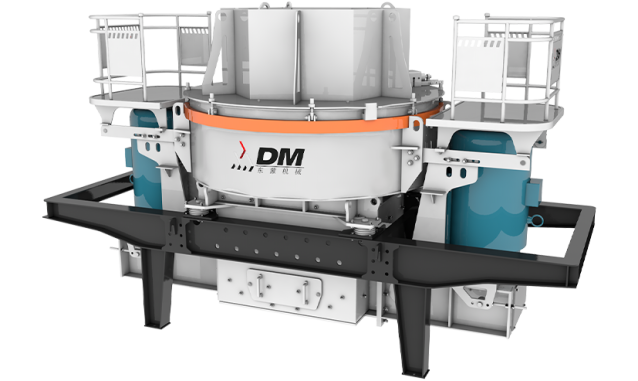

DVSI sand making machine

Feed Particle Size：≤40mm

Processing Capacity：100-650t/h

Machinery Weight：9.7-19.5t

Download Brochure Leave Message

Product Details

DVSI

Compared with the traditional equipment with the same power, the output is increased by 30%, and the mechanical performance is relatively stable.

DVSI sand making machine shaping is cubic, with good grain shape, reasonable gradation and adjustable fineness modulus, especially suitable for artificial sand making and stone shaping. In addition, the bearings of the machine adopt high-precision international brands to ensure a low failure rate of the system, and are equipped with German original thin oil lubricating stations to completely solve problems such as bearing heating.

Product Parameters

Model	Rotor Speed (R/Min)	Rotor Diameter (mm)	Max. feed size (mm)	Motor Power (kw)	Capacity (t/h)	Weight(t)	Overall Dimension (mm)
DVSI75	1740	730	40	200	100-180	9.7	4180X2180X2690
DVSI80	1740	730	40	250	150-220	9.8	4180X2180X2690
DVSI85	1630	850	40	160x2	250-350	16.5	5200X2620X3040
DVSI95	1630	850	40	200x2	300-450	17.5	5200X2620X3040
DVSI110	1400	1000	40	250x2	400-500	19.5	5200X2620X3040
DVSI120	1200	1200	50	315x2	450-580	23.1	5700X2980X4190

Product Advantage

less friction

Compared with the traditional equipment with the same power, the output is increased by 30%, and the mechanical performance is relatively stable.

01

Suitable for artificial sand making and shaping

The product is cubic, with good grain shape, reasonable gradation and adjustable fineness modulus, especially suitable for artificial sand making and stone shaping. Equipped with hydraulic cover opening device, the maintenance and replacement of components in the crushing chamber are convenient and quick.

02

Bearings adopt high-precision brands

The bearings of the machine are of high-precision international brands to ensure a low failure rate of the system, and it is also equipped with a German original thin oil lubricating station to completely solve the problems of bearing heating.

03

Easy to use

The equipment is light in weight, versatile in installation, and easy to use. Once the specific use is clear, only minor adjustments can be made to maximize its excellent performance.
