Stationary Crushers

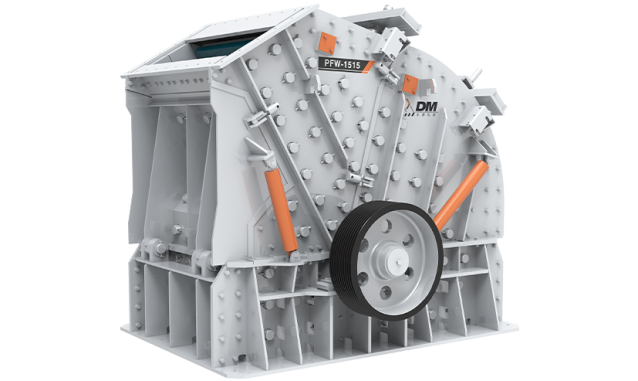

PFW European impact crusher

Product Name:

PFW European impact crusher

  • Feed Particle Size:≤350mm
  • Processing Capacity:160-600t/h
  • Machinery Weight:19.8-40.2t

Product Details

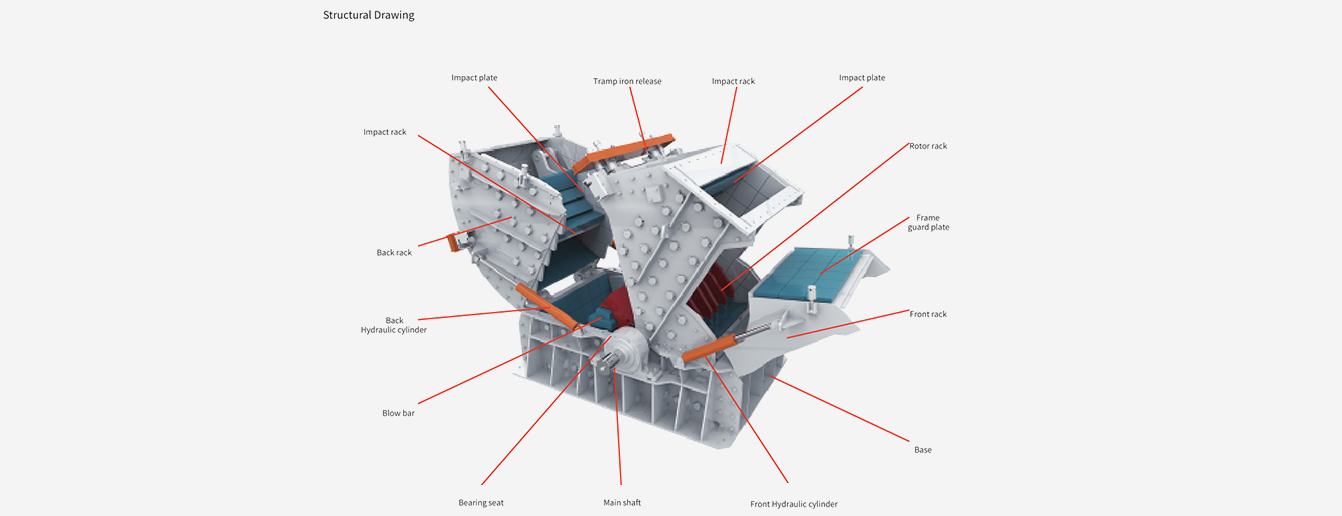

PFW-European-impact-crushe-2

PFW European impact crusher,Widely used in metallurgy, mining, cement, chemical industry, refractory materials and ceramics and other industrial sectors, as well as highway construction, water conservancy projects, construction gravel, machine-made sand processing and other fields.

PFW European version impact crusher is a crushing machine that uses impact energy to crush materials. This series of impact crushers have outstanding performance advantages, good discharge particle shape and a wide range of material application, which enable users to effectively reduce production and construction costs and operational investment.

Product Parameters

ModelRotor diameter (mm)Rotor length (mm)Max.feed size (mm)Capacity (t/h)Motor power (kw)Weight (t)Dimension (mm)
PFW-131312801340200160-220132-20019.83210x2730x2545
PFW-151515401500300250-350280-315303200x3082x3036
PFW-161816001800350440-600220x240.23447x3790x3160

Field of Application

Quarry Aggregate Processing

Quarry Aggregate Processing

Construction Waste Recycling & Reuse

Construction Waste Recycling & Reuse

Urban Road Reconstruction

Urban Road Reconstruction

Mine Waste Rock and Tailings Treatment

Mine Waste Rock and Tailings Treatment

Highway and Railway Construction

Highway and Railway Construction

Coal Mine Crushing and Screening

Coal Mine Crushing and Screening

Metal Ore Crushing

Metal Ore Crushing

Product Advantage

simg

large processing power

PFW European version impact crusher adopts heavy duty rotor design, unique plate hammer fixing device, and has the advantages of large processing capacity.

01

simg

Optional hydraulic control system

The optional hydraulic control system can quickly adjust the size of the discharge port and the discharge granularity through the hydraulic device.

02

simg

Automatic hydraulic opening device

The automatic hydraulic roof opening device can quickly complete the replacement of wearing parts such as blow bars.

03

simg

spring safety device

The machine adopts a spring safety device behind the impact plate. When other hard sundries enter the crushing cavity, the front and rear impact racks retreat, and the hard materials are discharged from the machine.

04
