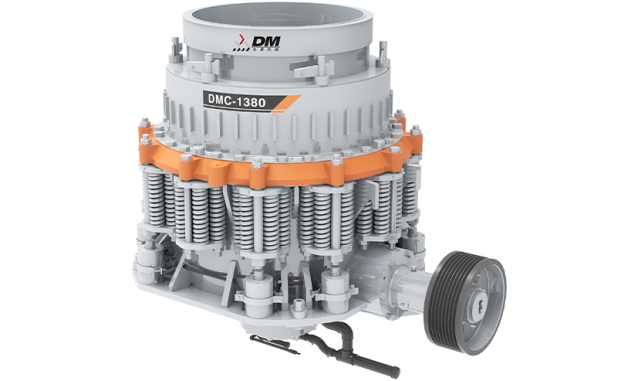

DMC-Compound-Cone-Crusher

DMC Compound Cone Crusher，The perfect combination of high-performance crushing cavity type and high crushing frequency greatly improves its processing capacity, and because of the lamination crushing principle, the crushed products are mostly cubic structures, which greatly reduces needle-like materials.

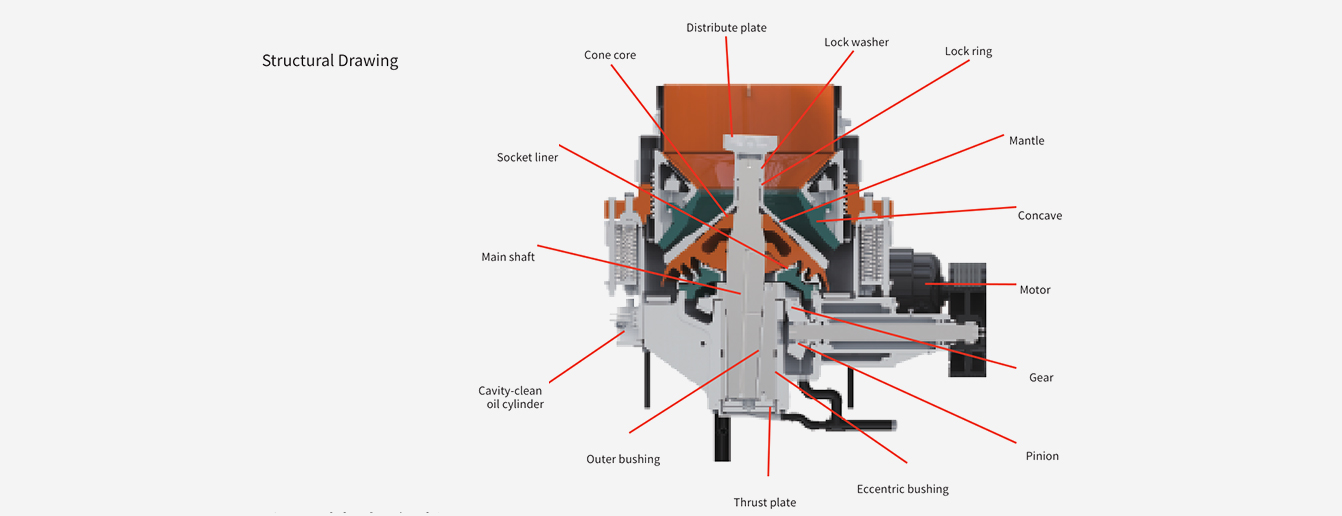

When working, the motor drives the eccentric sleeve to rotate through the V-belt, the large pulley, the transmission shaft, the small bevel gear and the large bevel gear, and the axis of the crushing cone rotates and oscillates under the force of the eccentric bushing, so that the surface of the crushing wall sometimes approaches. From time to time, it leaves the surface of the rolling mortar wall, so that the material is continuously impacted, squeezed and bent and broken in the annular crushing cavity composed of the fixed cone and the moving cone.

Model	Chamber	Max. feed size (mm)	Min discharge opening (mm)	Motor power (kw)	Capacity (t/h) Closed side setting (mm)										Weight(t)
Model	Chamber	Max. feed size (mm)	Min discharge opening (mm)	Motor power (kw)	6	10	13	16	19	22	25	38	51	64
DMC1000	C	160	13	110			80	100	135	150	175	235			10.8
	M	115	10	110		65	75	90	120	135	150				10.8
	F	80	8	110	52	62	72	78	115						10.51
	EF	50	6	110	50	55	65	70	102						10.51
DMC1160	C	180	13	132			115	135	150	180	200	260			15.5
	M	130	10	132		100	110	120	135	165	175				15.5
	F	90	10	132		80	105	110	140						15.5
	EF	60	6	132	60	74	105	110	130						15.5
DMC1300	C	200	16	200				150	180	200	230	310	390		22.3
	M	150	13	200			115	140	160	190	210				22.3
	F	102	10	200		90	115	145	160						22.3
	EF	70	8	200		88	110	135	155						22.3
DMC1380	C	215	19	220					200	220	260	350	440		26.3
	M	160	16	220				155	180	200	220				26.3
	F	115	13	220			150	190	210	230					26.3
	EF	76	8	220		122	148	185	200						26.3
DCM1650	C	235	22	250						265	310	420	525	580	36.5
	M	175	19	250					215	240	265	320			36.5
	F	130	13	250			180	210	235	255	275				36.5
	EF	90	10	250		148	178	200	220						36.5
DMC1950	C	350	22	280-315						330	390	525	655	725	44.3
	M	203	16	280-315				230	270	300	330				44.3
	F	140	13	280-315			185	225	265	340					44.3
	EF	95	10	280-315		180	220	260	335						44.3

High reliability and good stability

High reliability and good stability: The automatic control system with large diameter spindle, heavy main frame and independent thin oil lubrication system ensures the equipment is durable and reliable in operation. The iron-passing protection device ensures that the original discharge port can be quickly restored after the miscellaneous iron passes through the crushing cavity to ensure the discharge size.

01

Low operating cost Wide range of applications

Low operating cost and wide application range: due to large production capacity, high reliability and convenient maintenance, the production cost is greatly reduced; the machine adopts the principle of lamination and crushing to form a protective layer of material layer, which not only effectively reduces wear and prolongs the service life of wearing parts , and the proportion of cubes in the product is significantly increased, and the particle size is more uniform.

03

Simple structure and stable operation

Simple structure and stable operation: DMC compound cone crusher is simple in structure, easy to operate and maintain, convenient and quick to adjust the discharge port, time-saving and labor-saving during maintenance, especially the lining plate is easy to quickly replace, which reduces the downtime.
