Stationary Crushers

Product Name:

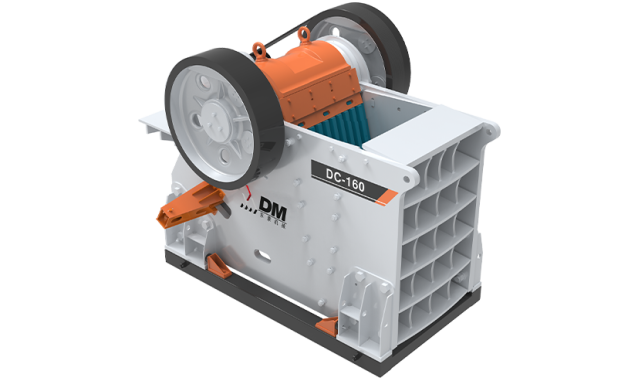

DC series high efficiency European jaw crusher

Feed Particle Size：≤1000mm

Processing Capacity：61-1204t/h

Machinery Weight：9.5-75t

Download Brochure Leave Message

Product Details

DC series high efficiency european jaw crusher It is widely used in ore crushing, construction aggregate production, construction waste crushing, water conservancy and hydropower engineering, highway, railway, road and bridge construction and other industries.

This series of jaw crusher runs smoothly and has a long service life. It is equipped with a double wedge block discharge opening adjustment system, which can adjust the equipment discharge opening conveniently and quickly. Even in the case of idling, the discharge opening can be adjusted within a few minutes. To the predetermined value, with the cooperation of the hydraulic system or the screw system, the automation is realized, which is simpler, safer and faster than the traditional jaw crusher gasket-type discharge adjustment system.

Product Parameters

Model	Size of feed opening (mm x mm)	Max.feed size (mm)	Capacity (t/h)	Eccentric shaft rotation speed (r/min)	Motor power (kw)	Closed side setting (mm)	Weight (t)
DC75	500x750	420	61-198	320	55-75	50-150	9.5
DC90	600x900	500	120-291	306	90	70-175	12.5
DC106	1200x1600	630	199-446	270	132	90-200	23.5
DC125	950x1250	800	327-728	240	160	100-250	42.8
DC160	1200x1600	1000	581-1204	220	250	150-300	75

Product Advantage

Running smoothly

This series of jaw crushers run smoothly and have a long service life. The integrated design of the main engine and the motor is compact in structure, light in weight, easy to install, and reduces installation costs.

01

Easy to adjust

Equipped with a double wedge block discharge opening adjustment system, the equipment discharge opening can be adjusted conveniently and quickly, and the discharge opening can be adjusted to a predetermined value within a few minutes even in the case of idling.

02

Automate

With the cooperation of hydraulic system or screw system, it can realize automation, which is simpler, safer and faster than the traditional jaw crusher gasket-type discharge adjustment system. Configure and set automatic timing to add lubricating oil system.

03

Larger effective stroke

The design of large centrifugal force and high crushing frequency makes the effective stroke at the bottom of the crushing cavity larger. Produced under a small discharge opening, it can produce more finer crushed products than other jaw crushers.
