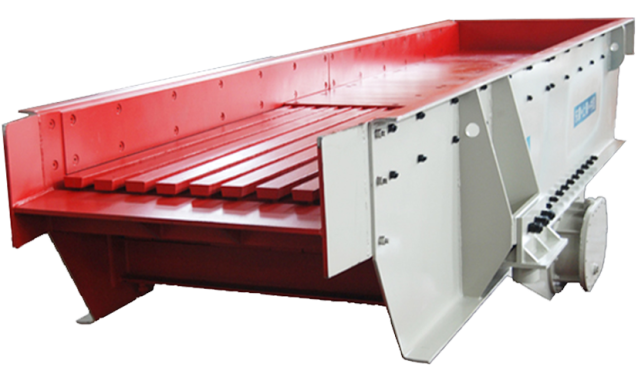

In the crushing production line, ZSW vibrating feeder can continuously and uniformly feed the crushing machinery, and initially screen the materials. A closed structure body can be used to prevent dust pollution.

The vibrating feeder is composed of a feeding trough, a vibration exciter, a spring support, and a transmission device. The vibration source of the vibrating feeding of the tank body is the vibration exciter. The vibration exciter is composed of two eccentric shafts (main and passive) and a gear pair. The motor drives the driving shaft through the V-belt, and then the gear on the driving shaft meshes with the passive shaft. Rotation, the main and passive shafts rotate in the opposite direction at the same time, so that the tank body vibrates, so that the material flows continuously and achieves the purpose of conveying the material.
