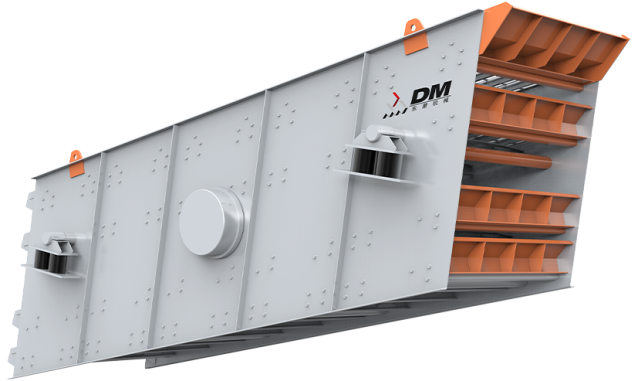

widely used in the quarrying and minng industries,the YK series vibrating screens are new high efficiency models which are available in 1,2,3,or 4 deck configurations,these machines have a heavy duty 2 bearing vibrating shaft mechanism operation whth a small amplitude and high frequency.there are 22 models in the series of various sizes and deck numbers.
| Model | screen deck | screen size (mm) | Max. feed size (mm) | Capacity (t/h) | Vibrating frequency (Hz) | Motor power (kw) | Weight (t) | Overall Dimension (mm) |
| 2YK~1230 | 2 | 1200x3000 | 100 | 10~90 | 16.2 | 7.5 | 2.3 | 3500x2127x1868 |
| 3YK~1230 | 3 | 1200x3000 | 100 | 30 ~90 | 16.2 | 7.5 | 3 | 3538x2168x2245 |
| 2YK~1548 | 2 | 1500x4800 | 200 | 50~190 | 13~16 | 15 | 5 | 5910x2320x1280 |
| 3YK~1548 | 3 | 1500x4800 | 200 | 50~200 | 13~16 | 15 | 6 | 5960x2320x1700 |
| 4YK~1548 | 4 | 1500x4800 | 200 | 50~200 | 13~16 | 15 | 7.5 | 6090x2320x2050 |
| 2YK~1854 | 2 | 1800x5400 | 200 | 50~280 | 16.2 | 18.5 | 6 | 6520x2550x1340 |
| 3YK~1854 | 3 | 1800x5400 | 200 | 50 ~300 | 16.2 | 22 | 7 | 6670x2550x1770 |
| 4YK~1854 | 4 | 1800x5400 | 200 | 80~320 | 16.2 | 30 | 9 | 6800x2550x2130 |
| 2YK~2160 | 2 | 2100x6000 | 250 | 100~330 | 16.2 | 30 | 8 | 7380x2880x1550 |
| 3YK~2160 | 3 | 2100x6000 | 250 | 100~380 | 16.2 | 30 | 9.5 | 7550x2880x1960 |
| 4YK~2160 | 4 | 2100x6000 | 250 | 100~430 | 16.2 | 37 | 12 | 7690x2880x2360 |
| 2YK~2460 | 2 | 2400x6000 | 300 | 100~380 | 16.2 | 30 | 8.5 | 7380x3180x1500 |
| 3YK~2460 | 3 | 2400x6000 | 300 | 160~450 | 16.2 | 30 | 10 | 7550x3180x1960 |
| 4YK~2460 | 4 | 2400x6000 | 300 | 160~450 | 16.2 | 37 | 13 | 76990x3180x2360 |
| 2YK~3070 | 2 | 3000x7000 | 350 | 150~600 | 16.2 | 22x2 | 12 | 8030x3660x1880 |
| 3YK~3070 | 3 | 3000x7000 | 350 | 150~650 | 16.2 | 30x2 | 15.5 | 8230x3660x2350 |
| 2YK~3275 | 2 | 3200×7500 | 150 | 100~750 | 12.16 | 22×2 | 12.5 | 8530×3860×1800 |
| 3YK~3275 | 3 | 3200×7500 | 150 | 100~750 | 12.16 | 30×2 | 16.5 | 8730×3860×2350 |
| 2YK~3680 | 2 | 3600×8000 | 100 | 150~1000 | 12.16 | 37×2 | 17.9 | 8906×4406×2030 |
| 3YK~3680 | 3 | 3600×8000 | 100 | 150~1000 | 12.16 | 45×2 | 21.4 | 9088×4423×2530 |
Utilizes a spring-loaded eccentric vibration mechanism to optimize the smoothness of start-stop operation
The main frame is a fully riveted structure, effectively avoiding vibration fatigue issues
The screen head is equipped with a feeding tray for improved feeding convenience
Includes springs, spring bases, and screen bars, eliminating the need for separate purchases
