Mobile Track Crushers and Screen

Product Name:

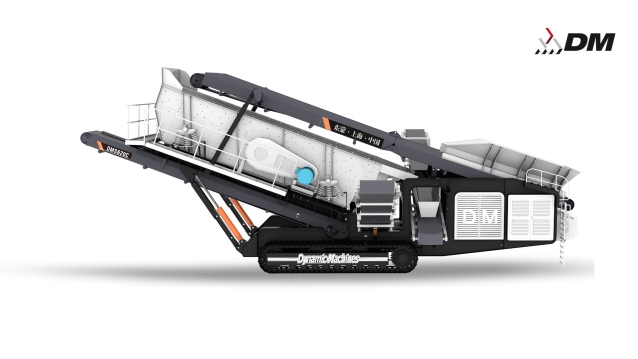

Mobile screening station

  • Feed Particle Size:≤400mm
  • Processing Capacity:100-380t/h
  • Machinery Weight:31t

Product Details

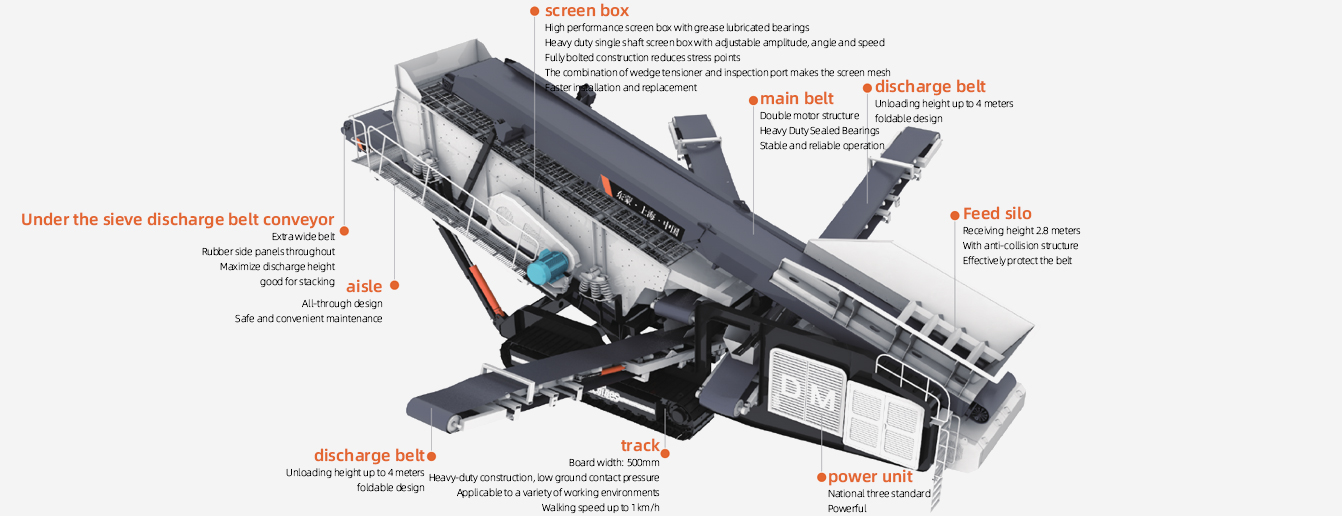

4.Mobile-screening-station

Mobile screening station is designed by dynamic optimization and has high-efficiency screening capacity. It can be operated independently or cooperated with the multi-stage Dongmeng mobile crushing series process flow.

It is widely used in screening operations in various crushing and screening processes. Screening of materials in quarries, mining sites and aggregate screening in crushed asphalt and concrete mixing plants. Construction and demolition waste, such as house demolition, recycling and screening of road concrete. Screening of river pebbles, Gobi Desert sand and gravel, coal mines, topsoil and other industries.

Product Parameters

Model DMS620C DMS620CH
Feeding Capacity(tph) 150 - 400 150 - 400
Hopper volume(cbm) 2.5 2.5
Screenbox size(mm) 6000 x 2000 6000 x 2000
Max. Capacity(tph) 380 380
Engine power(kw) 93 100
External power(kw) 70 70
Transport size(L×W×H, M) 15 x 3.75 x 3.8 15 x 3.75 x 3.8
Weight(tons) 33 35

Product Advantage

simg

Remote control

Using remote intelligent wireless remote control, it can walk on its own crawler without a crane, and can directly get on and off the flatbed trailer through the intelligent remote control to realize long-distance transportation and transfer operations.

01

simg

Screening machine can screen up to 4 types

The screening machine can screen up to 4 kinds (three-layer screen) of final products with practical value, and each finished material conveyor belt can be hydraulically folded, which can realize the transportation of the whole machine.

02

simg

Dynamically optimized design

It is designed by dynamic optimization and has high-efficiency screening capacity. It can be operated independently or cooperated with the multi-stage Dongmeng mobile crushing series process flow. According to the needs of customers for screening materials, the plate feeding system can be selected to achieve the screening efficiency of special materials.

03

simg

Complete screening system

Before leaving the factory, it is a complete screening system, which can be quickly put into production without on-site installation and debugging. The vibrating screen can be lifted and lowered by hydraulic pressure, which is convenient for maintenance and replacement of the screen, and is convenient for transportation.

04
