Mobile Track Crushers and Screen

Product Name:

Mobile sand making machine - tracked mobile VSI crusher

  • Feed Particle Size:≤40mm
  • Processing Capacity:150-380t/h
  • Machinery Weight:60t

Product Details

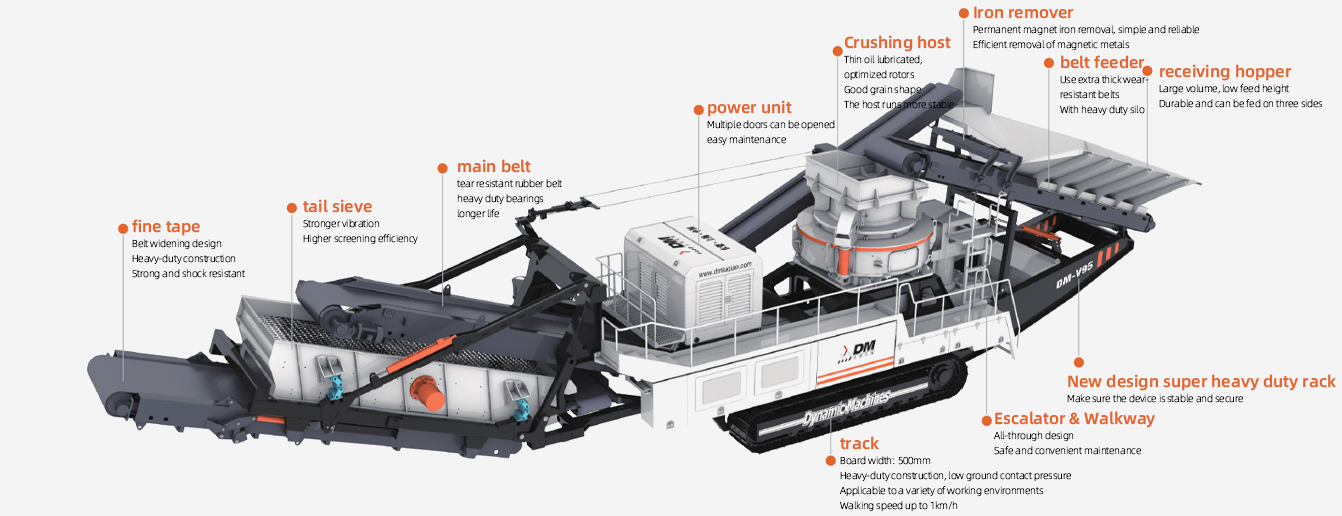

1.Mobile-sand-making-machin

Mobile sand making machine - tracked mobile VSI crusher. The throughput of the largest model of a single machine can reach 380 tons/hour. Compared with the traditional equipment with the same power, the output is increased by 30% and is stable.

The standard thin oil lubrication station can completely solve the problem of bearing heating, keep the main shaft bearing at a constant temperature, and prolong the maintenance cycle and service life. The intelligent wireless remote control device is used to control the crawler to walk, and a single person can remotely operate the upper and lower ordinary flatbed trailers to realize fast transition operations.

Product Parameters

Model DMV95 DMV95H
Capacity(tph) 150 - 380 150 - 380
Rotor diameter(mm) 950 950
Max. Feed size(mm) 40 40
VSI power(kw) 315 315
Engine power(kw) 93 420
External power(kw) 365 365
Feeding/discharge height(mm) 3200/3300 3200/3300
Transport size(L×W×H, M) 20 x 3.65 x 3.8 20 x 3.65 x 3.8
Weight(tons) 50 52

Product Advantage

simg

Optimized impact angle design

The optimized impact angle design of the crushing chamber, combined with the adjustable feeding system, directly reduces the use cost of the equipment.

01

simg

Suitable for sand making and stone shaping

The product is cubic, with good grain shape and reasonable gradation, especially suitable for artificial sand making and stone shaping

02

simg

Easy to operate

Easy operation and convenient maintenance. Equipped with a hydraulic cover opening device, the repair and replacement of the components in the crushing chamber are convenient and quick, saving time and effort.

03

simg

Air circulation system

Equipped with a unique air self-circulation system, which greatly reduces the external exhaust air volume and dust, and is more in line with current environmental protection requirements.

04
