Product Name:

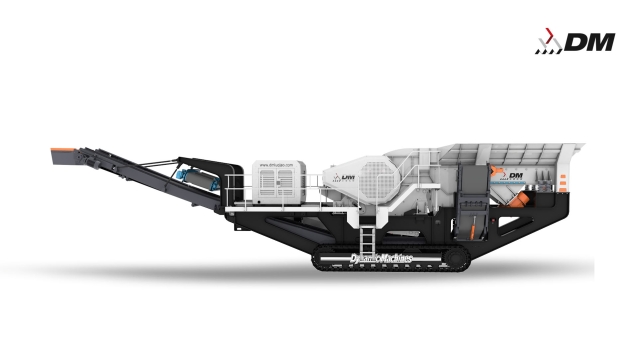

Mobile jaw crushing station

  • Feed Particle Size:≤650mm
  • Processing Capacity:120-440t/h
  • Machinery Weight:38-57t

Product Details

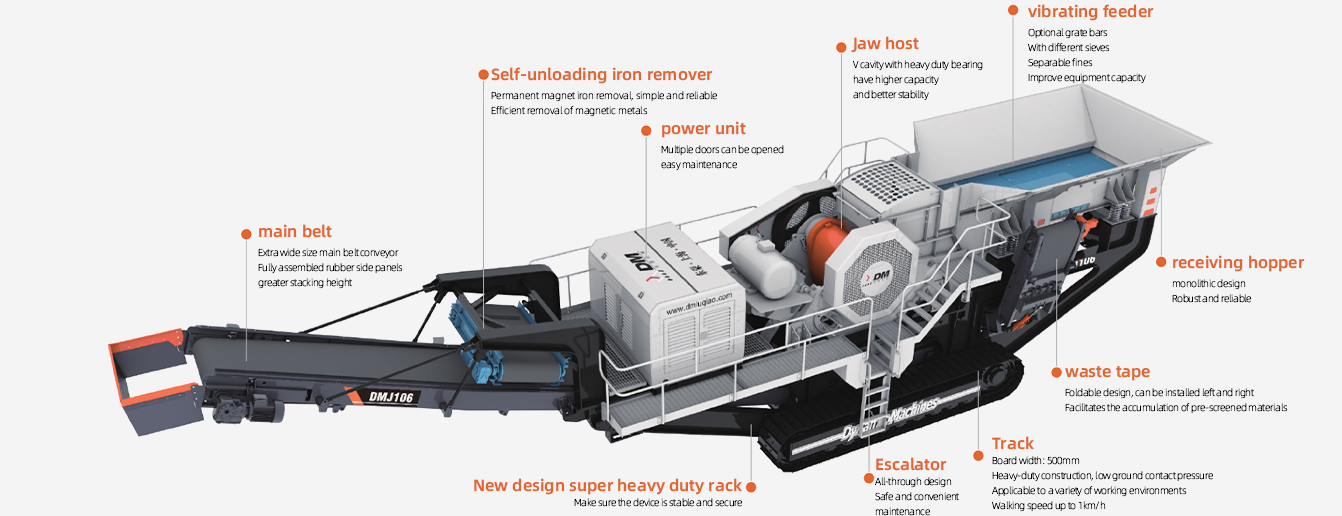

7.Mobile-jaw-crushing-station

Mobile jaw crushing station is widely used in construction waste crushing and treatment. At present, the construction waste resource reuse project has been put into operation nationwide, and the investment prospect is very considerable.

The crawler-type mobile jaw crushing station is a mobile crushing and screening equipment independently designed by our company and combined with the actual situation at home and abroad. The machine uses a hydraulic system to drive the crawler, so as to achieve smooth running, and can adapt to a variety of complex job site conditions. It is widely used in mining, stone mining, highways (railways) and bridges, urban construction waste disposal and many other fields.

Product Parameters

Model DMJ75H DMJ106 DMJ106H DMJ140 DMJ140H
Capacity(tph) 80-180100 - 260 100 - 260 230 - 680 230 - 680
Jaw crusher power(kw) 55-75110 - 132 110 - 132 160 160
Feed opening(mm) 750 × 5001060 × 750 1060 × 750 1400 × 820 1400 × 820
Max. Feed size(mm) 400630 630 700 700
Engine power(kw) 10093 280 93 280
External power(kw) 66-86141 - 163 141 - 163 195 195
Transport size(L×W×H, M) 11.3 x 2.2 x 3.217 × 3.5 × 3.8 17 × 3.5 × 3.8 18 × 3.6 × 3.8 18 × 3.5 × 3.8
Weight(tons) 3055 57 70 72

Product Advantage

simg

Modular design

Modular design, no welding structure, light structure, high fatigue resistance and strong impact resistance. The intelligent wireless communication device is adopted, and it can walk on its own clothes and belts, and can operate the upper and lower ordinary flatbed trailers remotely by one person to realize fast transition operations.

01

simg

Adopt "V"-shaped symmetrical crushing cavity design

Adopt "V"-shaped symmetrical crushing cavity design, deep crushing cavity, small meshing angle, large stroke, large processing capacity, low energy consumption, and large crushing ratio. The integrated motor installation, the motor base and the crusher-body installation, reduce the crusher space and the length of the V-belt.

02

simg

Heavy Eccentric Shaft

The movable jaw assembly adopts a forged heavy-duty eccentric shaft, high-quality heavy-duty spherical roller bearings, and a movable jaw body optimized by finite element analysis, which ensures the impact resistance and high stability of the movable jaw assembly. The crusher discharge opening is adjusted mechanically or hydraulically through the wedges on both sides, which is safe and reliable and saves downtime.

03

simg

increased production

Labyrinth seal and centralized lubrication system ensure that the bearing grease is not contaminated, making it more effective and stable. The higher rotation speed improves the throughput and the frequency of material crushing, and greatly increases the output.

04
