Mobile Track Crushers and Screen

Product Name:

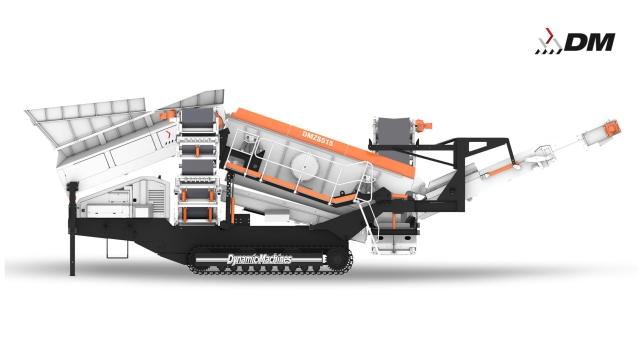

Mobile Heavy Duty Screen station

  • Feed Particle Size:≤500mm
  • Processing Capacity:100-500t/h
  • Machinery Weight:32t

Product Details

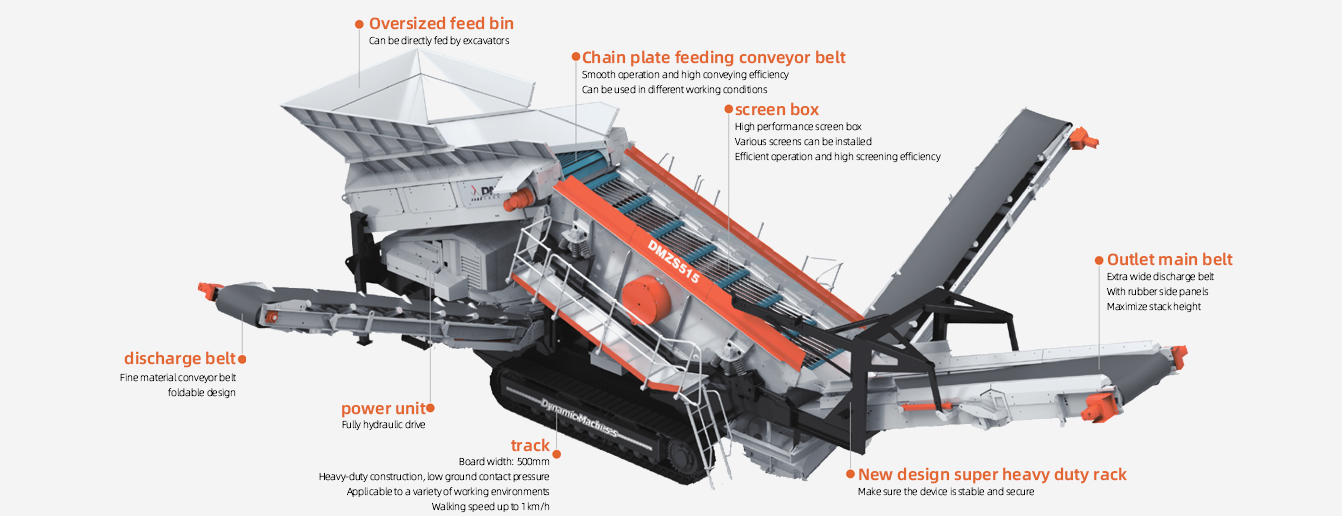

3.Mobile-heavy-screenina-stationl

Mobile Heavy Duty Screen station. can be lifted hydraulically, which is convenient for later maintenance and screen replacement. The angles of all discharge conveyors can be adjusted by hydraulic devices. The inclination angle of the heavy-duty vibrating screen can be adjusted between 13 degrees and 20 degrees through hydraulic devices.

The high-performance screen box can be installed with a variety of screens, including grate screen, perforated plate screen, mesh screen, needle screen, woven screen, etc.

Product Parameters

Model DMZS515
Feeding capacity(tph) 150 - 400
Hopper volume(cbm) 7
Screenbox layers 2
Screenbox inclined angle(°) 13 - 19
Max capacity(tph) 500
Engine power(kw) 93
Transport size(L×W×H, M) 15×3.2×3.5
Weight(tons) 33

Product Advantage

simg

Scope of application

Applications include quarries, mines, construction demolition debris processing, topsoil processing, material recycling and gravel screening, coal mines and aggregate screening.

01

simg

High performance screen box

The high-performance screen box can be installed with a variety of screens, including grate screen, perforated plate screen, mesh screen, needle screen, woven screen, etc. The inclination angle of the heavy-duty vibrating screen can be adjusted between 13 degrees and 20 degrees through hydraulic devices.

02

simg

Up to three finished products can be screened.

Equipped with heavy-duty vibrating screening equipment, it can not only work in conjunction with the primary crushing station, but also can be used as a separate stripping screen, which can screen up to three kinds of finished products.

03

simg

Vibrating screen can be lifted hydraulically

The vibrating screen can be lifted hydraulically, which is convenient for later maintenance and screen replacement. The angles of all discharge conveyors can be adjusted by hydraulic devices. Using intelligent wireless remote control crawler walking technology, a single person can remotely operate the upper and lower flatbed trailers, which can quickly realize transition operations.

04
