What are the wear-resistant parts of cone crusher?

In global mining, aggregate processing and mineral recycling industries, cone crusher serves as the core medium and fine crushing equipment for hard ores. Featuring laminar crushing principle, uniform finished aggregate shape, large crushing ratio and stable operation, it is widely applied in processing granite, basalt, iron ore, river pebbles and other materials worldwide. During long-term high-intensity extrusion and grinding of ores, core components keep suffering from impact, friction and abrasion. The service life and running stability of the whole machine fully depend on the quality and adaptability of wear parts. To reduce equipment failure rate, extend overall service life and cut operation costs for projects across the globe, you need to learn the functions and replacement standards of various crusher wear parts, and select a professional cone crusher manufacturer with mature technology, complete accessory system and global working condition adaptability. With high-quality wear parts and globally optimized craftsmanship, Shanghai Dongmeng Equipment has become the preferred brand for mining and crushing projects at home and abroad.

I. Overview of Cone Crusher Equipment

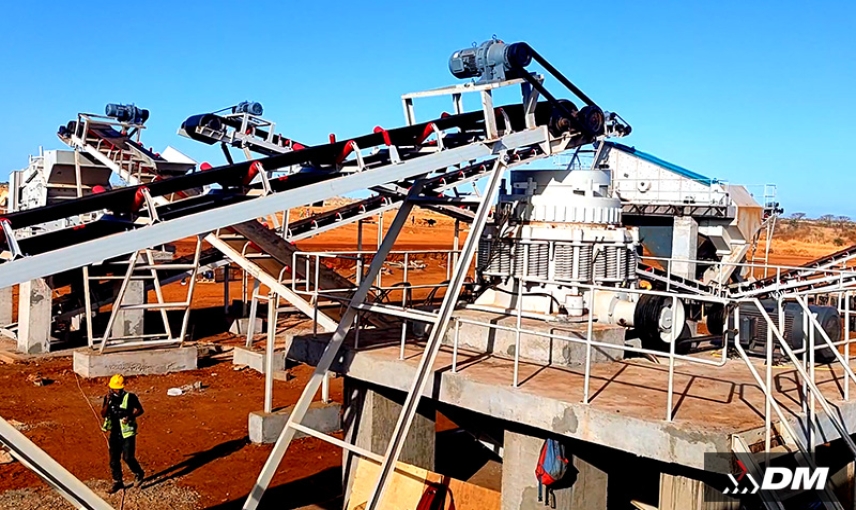

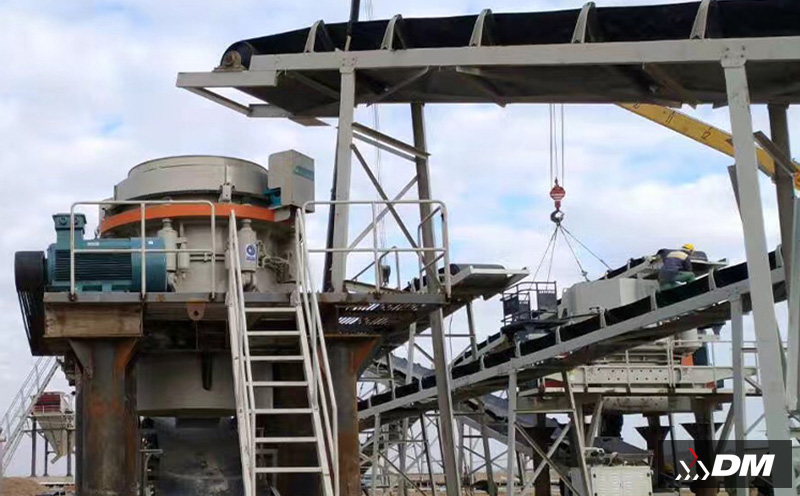

Cone crusher is professional equipment designed for hard materials, including single-cylinder hydraulic, multi-cylinder hydraulic, spring and mobile models, matching fixed production lines and mobile crushing stations to meet different output and ore hardness demands worldwide. Different from impact crushers and jaw crushers, cone crusher adopts laminar crushing mode. The mantle swings eccentrically to extrude and crush materials with the concave, leading to higher operation load and regular abrasion of wear components.

During operation, wear parts are core carriers to maintain stable equipment performance and the most frequently replaced accessories in maintenance. Wear parts from different crusher manufacturers vary greatly in material, craft and precision. Ordinary carbon steel accessories from small factories wear quickly, deform easily and have poor compatibility. Formal original manufacturers adopt high manganese alloy and high-chromium wear-resistant materials for precision forging, adapting to complex working conditions with high/low temperature, humidity and heavy load all over the world. As a professional crusher manufacturer deeply engaged in global crushing equipment R&D and production, Shanghai Dongmeng independently develops full series of original wear parts matching cone crushers. Tested on thousands of production lines at home and overseas, its wear resistance and service life far exceed general industrial accessories, fitting mining and aggregate processing projects globally.

II. Detailed Introduction To Core Wear Parts Of Cone Crusher

1. Mantle (Moving Cone Liner)

The mantle, also called moving cone liner, is the most critical and heavily consumed wear part of cone crusher. It wraps the outer side of the main cone and swings eccentrically with the main shaft to continuously extrude and crush materials. In operation, the mantle directly faces high-frequency impact and friction of hard ores, making it the most vulnerable component. Excessive wear over one third of its thickness will cause uneven discharging and output decline, requiring timely replacement. Shanghai Dongmeng’s mantles are made of high manganese steel alloy processed by special work hardening technology with high impact resistance. Suitable for crushing high-hardness ores worldwide, their service life is over 35% longer than ordinary accessories.

2. Concave (Fixed Cone Liner)

The concave, also known as fixed cone liner, is fixed inside the upper frame and forms a closed crushing cavity with the mantle to complete laminar crushing of materials. As a fixed wear-resistant working surface, the concave bears long-term material extrusion and scouring. The uniformity of inner wall abrasion directly affects cavity profile and finished aggregate shape. Dongmeng’s concave is integrally cast without pores or deformation, with thick and uniform wear-resistant layers optimized for overseas heavy-duty continuous operation. It effectively avoids rapid local abrasion and cavity deformation, matching large-scale mining production lines worldwide.

3. Cone Sleeve and Eccentric Sleeve

Cone sleeve and eccentric sleeve are key wear parts of the cone crusher transmission system, installed between the main shaft and eccentric shaft to guarantee stable eccentric swinging of the equipment. Long-time operation will lead to enlarged gaps from inner sleeve abrasion, further triggering excessive vibration, abnormal noise and main shaft shaking, even equipment jamming and shutdown. Shanghai Dongmeng adopts high-precision copper sleeves with wear resistance, high temperature resistance and anti-seizure performance, adapting to long-term high-speed continuous operation and greatly reducing abrasion faults of transmission systems for all-weather production globally.

4. Dust Seals and Material Stop Ring

Dust rings, sealing gaskets, material stop rings and other protective wear parts block dust and gravel from entering internal bearings and lubrication systems to protect core transmission components. Mining sites feature heavy dust and harsh working conditions. Worn and aged seals allow dust to invade oil circuits, contaminating lubricants and burning bearings prematurely. All Dongmeng sealing accessories are made of special high-temperature and wear-resistant materials with strong sealing performance and anti-aging property, fitting complex outdoor environments with drought, humidity and heavy dust worldwide.

5. Shield Liners and Wear Layers of Distributor Plate

Auxiliary wear parts such as distributor plates and frame shields bear feeding scouring and splashing abrasion to protect racks and feeding structures from damage. Though not directly involved in crushing, damaged parts will cause material segregation and uneven feeding, accelerating abrasion of core liners. Shanghai Dongmeng designs thickened wear layers for these parts with strong anti-scouring and wear resistance to fully stabilize overall machine structure.

Quality Support Of Wear Parts From Reliable Crusher Manufacturers

Global crushing projects generally face pain points including fast equipment abrasion, incompatible accessories and slow spare parts supply, mainly caused by selecting small manufacturers without independent R&D capacity, who produce low-quality materials, non-standard sizes and no after-sales service. Professional crusher manufacturers focus on both host quality and refined R&D & global adaptability of wear parts. Taking Shanghai Dongmeng as an example, its core advantages are as follows:

1. Custom Wear Materials For Global Diverse Working Conditions

Aiming at material characteristics in different regions worldwide, Dongmeng develops high manganese alloy and high-chromium wear accessories with different ratios for ordinary aggregate, high-hardness ore and corrosive materials, balancing toughness and hardness to prevent liner fracture and extend wear life. They fit mining crushing scenarios in Asia, Africa, America and other regions.

2. Original Precision Craftsmanship With 100% Compatible Accessories

All wear parts are independently molded and precision cast in-house with high dimensional accuracy and perfect fitting. No installation deviation avoids abnormal vibration and accelerated abrasion caused by mismatched accessories, ensuring long-term stable equipment operation.

3. Global Spare Parts Warehouses For Fast Supply

Relying on sound domestic and overseas warehouse layout, Shanghai Dongmeng stocks full series of cone crusher wear parts, supporting fast delivery and remote transportation for global customers, solving long procurement cycles and production shutdown losses of overseas projects.

4. Professional Maintenance Guidance To Extend Accessory Service Life

The manufacturer provides global remote technical support and on-site maintenance service, guiding customers to inspect and replace wear parts regularly according to working conditions and standardize operation procedures. Scientific maintenance further prolongs the service life of wear parts and the whole machine.

III. Conclusion

The core wear parts of cone crusher mainly fall into five categories: mantles, concaves, cone & eccentric sleeves, sealing protective parts and auxiliary wear shields. All wear parts coordinate with each other to guarantee efficient and stable equipment operation, whose quality directly determines output, failure rate and operation cost. For mining and aggregate enterprises around the world, to cut costs and boost efficiency, you need to accurately understand the functions and replacement cycles of various wear parts, and choose a reliable cone crusher manufacturer. With years of experience in crushing equipment manufacturing, Shanghai Dongmeng provides globally applicable cone crushers and accessory solutions featuring mature R&D craftsmanship, high-quality original wear parts and comprehensive global service system, supporting long-term stable production of crushing projects at home and abroad.
