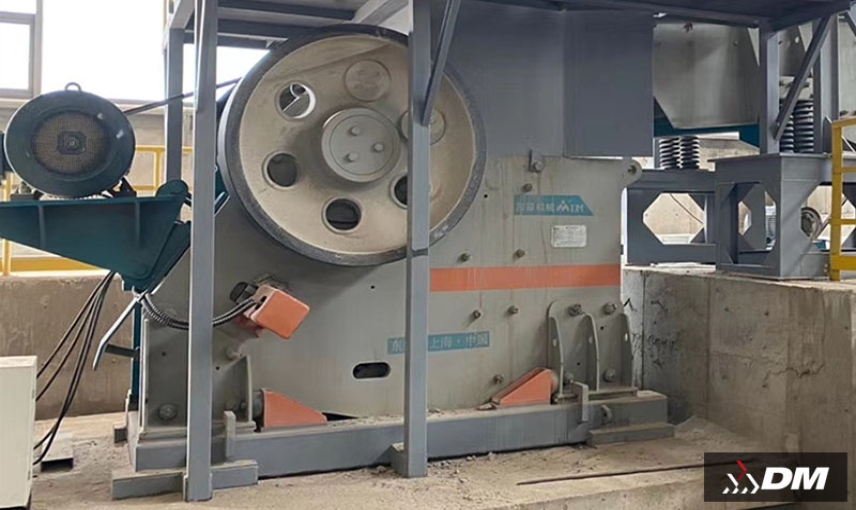

What Are the Factors Affecting the Output of Jaw Crushers?

What Are the Factors Affecting the Output of Jaw Crushers? Master Core Points to Improve Production Efficiency

In the global fields of mining and construction aggregate processing, jaw crushers have become the "main force" in the material primary crushing stage due to their stable structure, large crushing ratio, and strong adaptability. For overseas mining enterprises, the output of jaw crushers directly determines project benefits and investment return cycles. Therefore, accurately grasping the key factors affecting their output is a core prerequisite for achieving efficient production. This article will systematically analyze the core factors affecting the output of jaw crushers from multiple dimensions such as equipment itself, material characteristics, and operation management, providing practical capacity optimization guidelines for overseas users.

1. Core Equipment Configuration: The "Inherent Foundation" of Output

The self-configuration of jaw crushers is the fundamental factor determining output, and the performance and design rationality of core components directly affect crushing efficiency.

1. Crushing Chamber Design: The deep cavity and curved design of the crushing chamber are crucial. The deep cavity structure can increase the feeding volume, allowing more sufficient material filling and reducing idling loss; the optimized curved cavity can guide materials to move along a preset trajectory, avoiding problems such as "material blocking" and "material jamming", making the crushing process smoother. For example, the deep V-shaped crushing chamber we developed for hard rock crushing increases the feeding capacity by more than 20% compared with traditional cavities, effectively improving the output per unit time.

2. Moving Jaw Speed and Stroke: The movement parameters of the moving jaw need to match the material characteristics. Excessively high speed may cause materials to be thrown out before being crushed, resulting in "over-crushing" and output waste; excessively low speed will reduce the crushing frequency and directly lower the production capacity. At the same time, a reasonable moving jaw stroke can enhance the crushing impact force, especially for hard materials such as granite and basalt, increasing the stroke can improve the single crushing efficiency and ensure stable output.

3. Motor Power and Transmission System: The motor is the "power core" of the jaw crusher. Insufficient power will cause the equipment to "lack power" when processing high-hardness materials, resulting in problems such as speed reduction and shutdown; a high-quality transmission system (such as a combination of V-belts and flywheels) can reduce power loss, ensure efficient transmission of motor power to the crushing mechanism, and avoid output attenuation caused by power loss.

2. Material Characteristics: The "Objective Constraint" of Output

The inherent properties of crushed materials are important external factors affecting output. Overseas users need to adjust production plans according to the characteristics of local mineral resources.

1. Material Hardness and Toughness: This is the most core influencing factor. When crushing medium-soft materials such as limestone, the jaw crusher has low wear and low crushing resistance, and the output can reach the peak; when processing hard materials such as iron ore and quartzite, the crushing resistance increases, the wear of the moving jaw accelerates, and the output will decrease by about 30%. In addition, tough materials such as gangue are easy to adhere to the wall of the crushing chamber, resulting in a reduced cavity size, which requires regular cleaning to maintain output.

2. Feeding Particle Size and Uniformity: The feeding particle size must strictly match the size of the jaw crusher's feed port. Excessively large materials will get stuck at the feed port, causing shutdown and cleaning; excessively small materials will increase the number of crushing times and reduce efficiency. At the same time, uneven feeding particle size will cause "unbalanced load", making the moving jaw bear uneven force, which not only affects the output but also aggravates equipment wear. It is recommended to equip a vibrating feeder to achieve uniform feeding.

3. Material Humidity and Powder Content: When the material moisture content is too high (exceeding 15%), it is easy to stick to the crushing chamber and discharge port, causing material blocking; excessive powder content will generate dust during the crushing process, affecting equipment heat dissipation and lubrication, and indirectly reducing output. During the rainy season or when processing wet materials, it is necessary to equip drying equipment or strengthen cavity cleaning to ensure smooth production.

3. Operation and Maintenance: The "Acquired Guarantee" of Output

Scientific operation specifications and a sound maintenance system can maximize the equipment's production capacity and extend its service life, which is particularly important for overseas projects.

1. Feeding Method and Uniformity: Adopting "continuous and uniform feeding" is the key to increasing output. Suddenly increasing the feeding amount will cause the crushing chamber to be overloaded and the discharge to be unsmooth; insufficient feeding will cause the equipment to idle and waste power. Real-time adjustment of the feeding speed through an intelligent feeding system can keep the crushing chamber in the optimal working state of "full but not blocked".

2. Discharge Port Size Adjustment: The discharge port size must be reasonably set according to the finished material requirements. Excessively large size can increase output, but the finished product particle size does not meet the requirements and requires secondary crushing; excessively small size will increase crushing resistance and cause a sharp drop in output. It is recommended to accurately control the discharge port size through a hydraulic adjustment system according to material characteristics and finished product standards to achieve a balance between output and quality.

3. Regular Maintenance and Wear Part Replacement: After the wear parts such as jaw plates and liners are worn, the crushing gap will increase, the crushing efficiency will decrease, and the output will drop. Overseas users need to establish a regular maintenance mechanism and replace worn parts in a timely manner. Our jaw crushers use high-strength wear-resistant alloy jaw plates, whose service life is more than twice that of ordinary materials. At the same time, we have established more than 50 spare parts centers around the world to ensure fast supply. In addition, regular inspection of the lubrication system and fastening bolts can avoid equipment failure and shutdown, ensuring continuous production.

4. Model Selection and Adaptation: The "Prerequisite" of Output

Incorrect model selection is an important reason for failing to meet the output standard. Overseas users need to select a suitable jaw crusher model according to project scale, material characteristics, finished product requirements, etc. For example, small quarries are suitable for small and medium-sized jaw crushers, while large iron ore projects need to be matched with heavy-duty jaw crushers with large feed ports and high power; when processing materials with strong abrasiveness, it is necessary to select reinforced frames and wear-resistant components to avoid insufficient output caused by equipment overload.

Choose a Professional Manufacturer to Unlock Production Potential

As a professional manufacturer with 20 years of experience in the mining machinery field, we have always focused on the needs of overseas users. Our jaw crushers have passed multiple international certifications such as CE, ISO, and GOST, adapting to different voltages and working conditions in various regions around the world. We provide a full-chain service from equipment selection consultation, customized configuration, to on-site installation and commissioning, and remote operation and maintenance support. Whether you are facing output improvement problems or need a jaw crusher solution adapted to specific working conditions, you can contact us at any time, and let our professional team protect your production efficiency.
