Single-shaft shredder
This equipment consists of a reducer, cutter shaft, fixed blades, moving blades, and a shredder chamber. Material falls into the shredder chamber from the feed hopper. The cutter shaft rotates at low speed, crushing the material through shearing and tearing. Additionally, a pushing device presses the material against the cutter shaft, further increasing crushing efficiency. During the crushing process, material smaller than the screen openings is discharged through the screen and enters subsequent processes; material larger than the screen openings returns to the chamber for repeated crushing via a rotary screen until the material meets the required size before being discharged.
Application : Bulky waste disposal solution
Bulky waste refers to large, integrated discarded items requiring dismantling and reprocessing, including furniture such as sofas and mattresses.
Solution Description

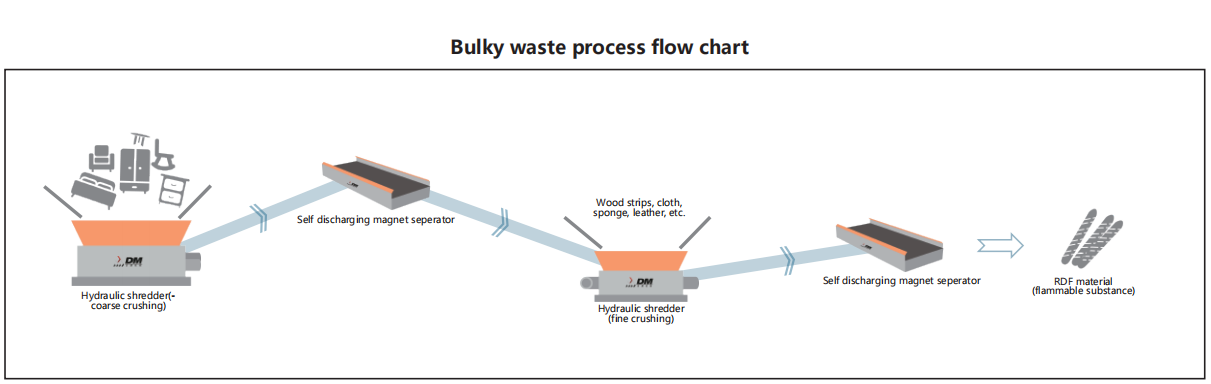

This solution utilizes dual-stage shredding (primary coarse shredders&secondary fine shredders) to process bulky waste, Shredded materials undergo magnetic separation and combustible fraction refinement enabling full segregation of metals from combustible components for resource recovery,. The fully automated system eliminates manual dismantling, significantly enhances production efficiency, and achieves a higher material recovery rate, revolutionizing bulky waste conversion into circular resources.
