Solid Waste Treatment

Product Name:

Frequency conversion negative pressure air separator

Product Details

  Acritical separation unit in municipal solid waste processing, effectively isolating light weight materials (plastics,foam,paperscraps)from dense fractions to ensure purity of heavy components. Operates on Aerodynamic principles that segregate materials by density differential.

 Application-Construction waste disposal solution

Frequency conversion negative pressure air separator

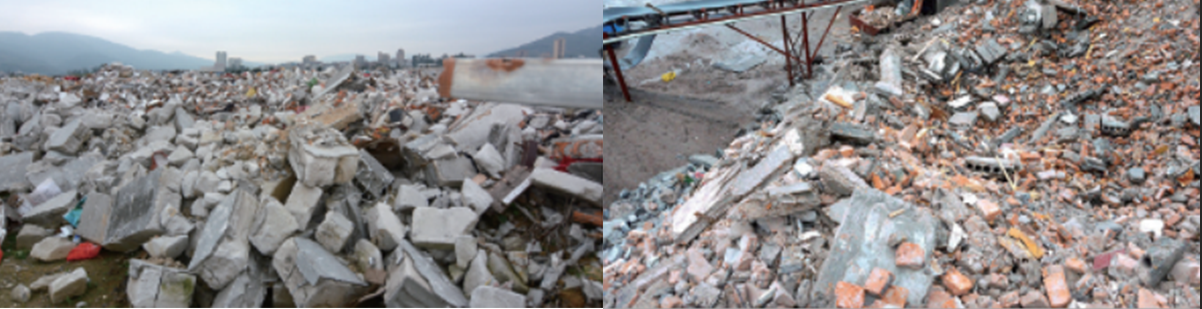

  construction waste

  Defined as residual soils, excavated materials, demolition debris, slurry, and other waste

  substances generated during construction, demolition, or renovation activities by construction units or individuals on buildings, structures, pipelines, and related infrastructure.



Frequency conversion negative pressure air separator

  Solution description:

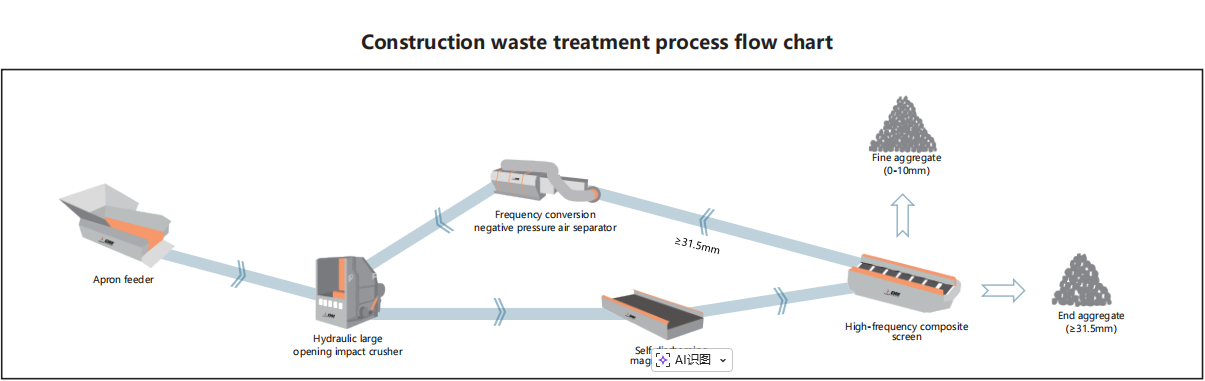

  Our system utilizes hydraulic jaw crushers, large-diameter impact crushers, high frequency composite screens, and lightweight material sorting equipment to execute a streamlined conversion process.

Product Parameters

Equipment Name Parameter Item Parameter Content
Frequency conversion negative pressure air separator
DMFX1200
Fan Installed Power & Belt Conveyor/Roller Power Fan: 30kw; Belt conveyor & roller: 18kw
Maximum Feed Size ≤300mm
Speed Regulation Method Fan, feed belt conveyor and roller adopt frequency conversion
Drive Motor Brand Leibo or domestic equivalent grade
Reducer Brand Guomao, Boneng or domestic equivalent grade
Maximum Air Volume & Total Pressure Max air volume: 32746m³/h; Total pressure: 2063Pa
