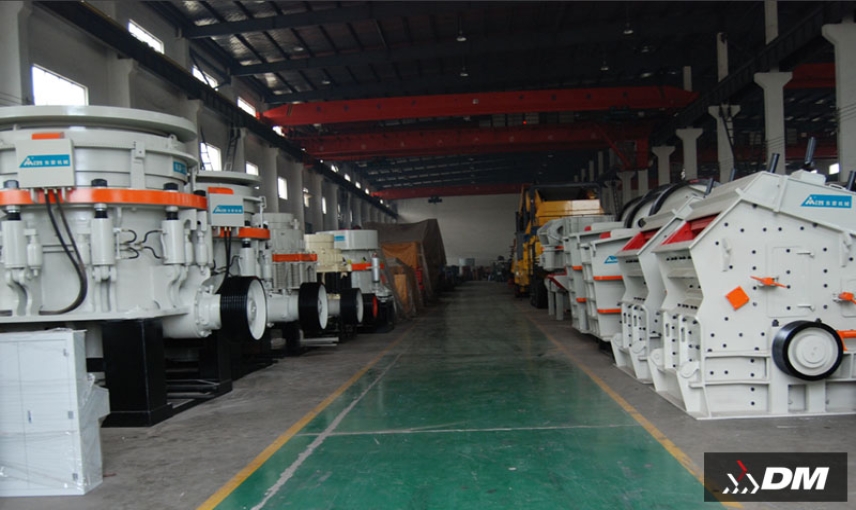

What is the difference between a jaw crusher and an impact crusher?

In engineering fields such as sand and gravel production, mining, and construction waste treatment, crushers are core equipment. Among them, jaw crushers and impact crushers are the most widely used. Although both are used for material crushing, they have significant differences in working principles, application scenarios, finished product effects, etc. This article will detail the core differences between the two from multiple dimensions to help users accurately select equipment according to their needs.

I. Different Working Principles

Jaw Crusher: Adopts the "compression crushing" principle. Through the relative movement of the movable jaw plate and the fixed jaw plate, it simulates the biting action of animal jaws to reciprocally squeeze and grind materials. Materials are crushed by pressure between the two jaw plates, belonging to typical laminar crushing, suitable for the powerful crushing of large-sized materials.

Impact Crusher: Adopts the "impact crushing" principle. It relies on the high-speed rotating rotor to drive hammers, blow bars, or impellers to impact materials at high speed. At the same time, materials collide and grind with each other in the crushing cavity, achieving crushing through the combination of impact and grinding. The core is the conversion of kinetic energy into crushing energy, featuring high crushing efficiency and controllable particle shape.

II. Different Crushing Stages and Applicable Materials

Jaw Crusher: Focuses on primary crushing and secondary crushing, serving as the "first process" of the crushing production line. It mainly processes high-hardness and large-sized materials, such as granite, basalt, iron ore, and large concrete blocks from construction waste. The feeding size can reach more than 1.5 meters, capable of withstanding the impact of high-hardness materials and adapting to harsh crushing working conditions.

Impact Crusher: Focuses on secondary crushing, tertiary crushing, and sand making, mostly used in the middle or final section of the production line. It is suitable for materials with medium hardness or below, such as limestone, dolomite, recycled aggregates from construction waste, and pebbles. It has stronger adaptability to scenarios requiring high particle shape quality and can also be used for aggregate shaping.

III. Different Characteristics of Finished Materials

Jaw Crusher: The finished product has a relatively large particle size, generally between 10-300mm, with an irregular particle shape and a relatively high content of needle-like and flaky particles. It cannot be directly used in high-quality construction projects and requires further processing by subsequent equipment.

Impact Crusher: The finished product has a uniform particle size, which can be accurately controlled below 5mm (for sand making scenarios) or 5-30mm (for aggregate scenarios). The particle shape is round and cubic, with a needle-like and flaky particle content of less than 5%, meeting the national standards for high-quality construction sand and high-grade aggregates. It can be directly used in concrete mixing, road paving, and other projects.

IV. Different Equipment Performance and Advantages

Jaw Crusher: Features a simple and compact structure, low failure rate, convenient maintenance, large crushing ratio (up to 10-30), large feeding port, strong pressure resistance, and low operating cost. It is suitable for long-term processing of large-sized and high-hardness materials, and is an essential primary crushing equipment for large-scale crushing production lines.

Impact Crusher: Combines crushing and shaping functions, with high sand making efficiency. The wearing parts are made of high-wear-resistant materials, ensuring a long service life. It has relatively low energy consumption and can flexibly control the particle size and shape of finished products by adjusting parameters such as rotor speed and cavity type, adapting to diverse needs for high-grade aggregate production.

V. Different Application Scenario Focuses

Jaw Crusher: Mainly used in scenarios such as primary crushing in mining, crushing of large-sized materials in infrastructure projects, initial volume reduction of construction waste, and ore crushing in the metallurgical industry. Its core function is to crush large-sized materials into medium-sized particles to prepare for subsequent crushing processes.

Impact Crusher: Mainly used in scenarios such as mechanical sand production, aggregate shaping, precision processing of recycled construction waste aggregates, sand preparation for road projects, and raw material production for dry-mixed mortar. Its core function is to produce high-quality finished sand and gravel, increasing the added value of materials.

VI. Summary: How to Choose?

Jaw crushers and impact crushers are not substitutes but form a "division of labor and cooperation" in the crushing production line: Choose a jaw crusher for processing large-sized, high-hardness materials that require primary crushing; choose an impact crusher for pursuing high-quality finished particle shape, requiring secondary/tertiary crushing or sand making, and producing high-grade aggregates. In complete production lines such as construction waste resource utilization and sand and gravel plants, the two are often used in combination. Jaw crushers are responsible for primary crushing, while impact crushers handle secondary/tertiary crushing and shaping, realizing the whole-process treatment of "converting large-sized materials into high-grade sand and gravel".

Jaw Crusher or Impact Crusher for Construction Waste Crushing? Key Differences and Selection Guide

In the field of construction waste resource treatment, the selection of crushing equipment directly determines the quality of recycled aggregates, processing efficiency, and project benefits. Jaw crushers (jaw crushers) and impact crushers (impact crushers) are the two most commonly used core equipment in construction waste crushing production lines. They have significant differences in crushing principles, application scenarios, finished product effects, etc. This article will detail the core differences between the two and provide targeted selection suggestions to help the efficient implementation of construction waste treatment projects.

I. Differences in Core Working Principles

Jaw Crusher: Adopts the compression crushing principle. Through the reciprocal relative movement of the movable jaw plate and the fixed jaw plate, it simulates the biting action of animal jaws to strongly squeeze and grind construction waste. Materials are crushed by laminar pressure between the two jaw plates, belonging to typical "static pressure crushing", with pressure as the main force and impact force as the auxiliary in the crushing process.

Impact Crusher: Adopts the impact crushing principle. It relies on the high-speed rotating rotor to drive blow bars to impact construction waste at high speed. At the same time, materials are thrown onto the impact plate for secondary collision, and materials also collide with each other for crushing. The entire process converts kinetic energy into crushing energy, belonging to "dynamic pressure crushing", featuring high crushing efficiency and shaping effect.

II. Positioning and Applicable Scenarios in Construction Waste Treatment

Jaw Crusher: Focuses on primary crushing of construction waste, serving as the "first process" of the crushing production line. Construction waste is mostly large concrete blocks, bricks, and stones with large and uneven hardness. Jaw crushers have large feeding ports and strong pressure resistance, capable of directly processing large construction waste over 1 meter without prior pretreatment. They are suitable for initial volume reduction and primary crushing of construction waste, and are the preferred equipment for processing large-sized and high-hardness construction waste.

Impact Crusher: Focuses on secondary and tertiary crushing of construction waste, mostly used in the middle or final section of the production line. After primary crushing by jaw crushers, the particle size of construction waste is moderate. Impact crushers can further crush it into standard-compliant recycled aggregates and shape the aggregates to optimize the particle shape. They are suitable for processing medium-hardness construction waste, such as concrete fragments and brick fragments. It is not recommended to directly process ultra-large or high-hardness construction waste, as it may cause accelerated wear of equipment.

III. Comparison of Recycled Aggregate Finished Product Characteristics

Jaw Crusher: The finished product has a relatively large particle size, generally between 20-300mm, with an irregular particle shape and a relatively high content of needle-like and flaky particles. It cannot be directly used in high-quality construction projects and can only be used as coarse aggregates or raw materials for subsequent crushing, requiring matching with secondary/tertiary crushing equipment for further processing.

Impact Crusher: The finished product has a uniform particle size, which can be accurately controlled between 5-40mm. The particle shape is round and cubic, with a low content of needle-like and flaky particles, meeting the "Standard for Recycled Coarse Aggregates for Concrete". It can be directly used in scenarios such as road bases, concrete mixing, and brick making, with higher added value of recycled aggregates.

IV. Differences in Equipment Performance and Operation and Maintenance Costs

Jaw Crusher: Features a simple structure, low failure rate, wearing parts are jaw plates made of high-wear-resistant materials, with a long service life, convenient maintenance, and low operation and maintenance costs. The equipment operates stably, can continuously process large-sized construction waste, and adapts to harsh working conditions. However, the crushing ratio is relatively small, and it needs to be matched with subsequent equipment to complete the whole-process crushing.

Impact Crusher: Has a relatively complex structure, wearing parts are blow bars and impact plates. The wear rate is related to the hardness and feeding particle size of construction waste, and the operation and maintenance costs are slightly higher than those of jaw crushers. However, it has a large crushing ratio and high processing efficiency, combining crushing and shaping functions, which can reduce the number of equipment in the production line and simplify the process flow.

V. Core Selection Suggestions for Construction Waste Treatment

1. Select according to the type of construction waste: For processing large-sized and high-hardness construction waste (such as thick concrete blocks and granite waste), prioritize jaw crushers for primary crushing; for processing medium-hardness and small-sized construction waste (such as brick fragments and fine concrete debris), impact crushers can be directly used for secondary/tertiary crushing.

2. Select according to production line requirements: For small-scale construction waste treatment projects that only require initial volume reduction, jaw crushers can be used alone; for projects requiring the production of high-quality recycled aggregates, it is recommended to adopt the "jaw crusher + impact crusher" combination. After primary crushing by jaw crushers, impact crushers perform secondary/tertiary crushing and shaping, balancing efficiency and quality.

3. Select according to cost and benefit: For those pursuing low operation and maintenance costs and long-term stable operation, jaw crushers have more advantages; for those pursuing high finished product quality and increasing the added value of recycled aggregates, impact crushers offer higher comprehensive benefits.

VI. Summary

Jaw crushers and impact crushers are not opposing choices but complementary in construction waste treatment: jaw crushers are good at "breaking hard bones" and responsible for primary crushing of large-sized construction waste; impact crushers are good at "precision processing" and responsible for secondary/tertiary crushing and aggregate shaping. In actual projects, it is necessary to flexibly choose to use them alone or in combination according to the particle size, hardness of construction waste, requirements for finished aggregates, and budget, so as to maximize the efficiency and benefit of construction waste resource treatment.
