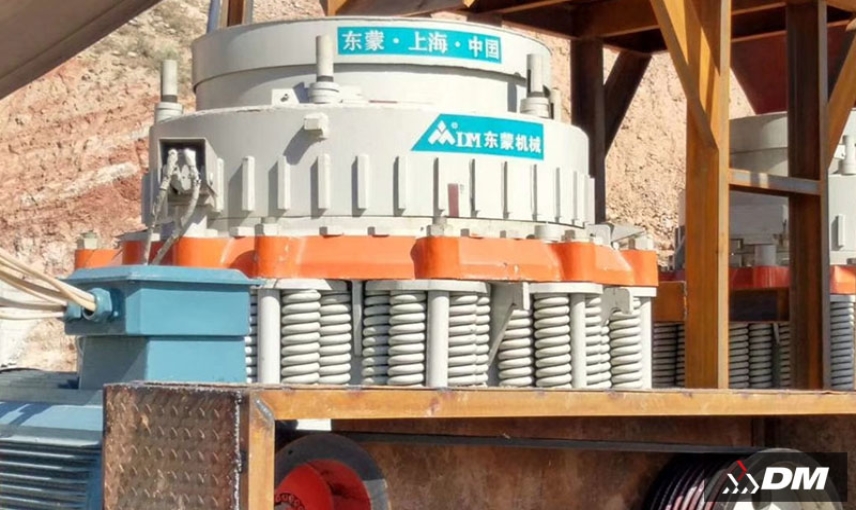

Cone crusher working principle

Cone crusher is an indispensable core equipment in modern mining and aggregate production. With its efficient crushing capacity and stable operation performance, it is widely used in metal mines, building stone materials, cement industry and other fields around the world. Its working principle integrates the sophistication of mechanical design and the physical laws of material crushing, which is worthy of in-depth understanding.

Core Structure

A cone crusher is mainly composed of frame, concave (fixed cone), mantle (movable cone), eccentric sleeve mechanism, transmission device, hydraulic adjustment system and other parts. The mantle is installed on the eccentric sleeve through the main shaft, and the concave is fixed above the frame, forming an annular crushing chamber with a wide top and a narrow bottom between them.

Working Process

When the equipment is started, the motor drives the horizontal shaft to rotate through the pulley and coupling, and the horizontal shaft then drives the eccentric sleeve to rotate around its own axis through a pair of bevel gears. The special structure of the eccentric sleeve makes the mantle rotate and perform periodic eccentric swinging motion around the center line of the crusher - there is an included angle between the axis of the mantle and the axis of the concave, and the suspension point of the mantle deviates from the geometric center.

During the half stroke when the mantle approaches the concave, the materials in the crushing chamber are subjected to the combined forces of extrusion, shearing and bending, and are crushed into smaller particles; during the half stroke when the mantle moves away from the concave, the crushed materials are discharged downward under the action of gravity to realize continuous discharging. This cyclic cycle of "crushing when approaching, discharging when moving away" is repeated hundreds of times per minute, making the crushing process continuous and uniform.

Key Mechanical Mechanisms

The crushing effect of cone crusher mainly depends on three mechanical actions: the first is lamination crushing, materials in the crushing chamber are not single-particle crushed, but form a material layer, and particles squeeze each other, which significantly improves the crushing efficiency and fine particle content; the second is shearing action, the swinging motion of the mantle exerts a tangential force on the materials, helping to crush ores with high toughness; the last is bending fracture, flaky or strip-shaped particles fracture when subjected to uneven stress, improving the product particle shape.

Particle Size Control and Overload Protection

Modern cone crushers are usually equipped with a hydraulic adjustment system, which adjusts the width of the discharge opening by changing the position of the concave or mantle, thereby controlling the product particle size. When unbreakable materials (such as iron blocks) enter the crushing chamber, the hydraulic system can quickly reduce the support pressure, make the mantle drop to allow foreign objects to pass through, and then automatically reset to achieve reliable overload protection. This design greatly reduces the risk of equipment damage caused by iron passing, and improves the reliability and safety of operation.

Global Application Characteristics

In different countries and regions, the application focus of cone crushers varies. In mines in Australia and South America, large-scale cone crushers are mostly matched with semi-autogenous mills to undertake medium and fine crushing tasks, emphasizing processing capacity and operation rate; in Europe and North America, where strict requirements are placed on finished product particle shape and gradation, cone crushers are often used as the last crushing equipment before sand making; in infrastructure construction in Africa and Southeast Asia, cone crushers have become the main equipment for hard rock crushing due to their strong adaptability and relatively convenient maintenance.

Summary

The cone crusher drives the mantle to periodically approach and move away from the concave through the eccentric swinging mechanism, realizing continuous lamination crushing and discharging of materials. Its characteristics of high-efficiency crushing, adjustable particle size, and automatic overload protection make it play a key role in global mineral processing and engineering stone production. With the continuous advancement of automatic control technology and wear-resistant materials, modern cone crushers are developing towards intelligence, high efficiency and lower unit energy consumption, continuously providing solid support for global infrastructure construction and mineral resource development.
