The design and layout of crushing equipment are core links that determine production line efficiency, operating costs, and safety compliance, directly affecting project investment returns and long-term competitiveness. Whether it is the site planning of fixed crushing stations or the structural design of mobile equipment, systematic planning must be carried out around core elements such as raw material characteristics, capacity requirements, and environmental standards. For crushing equipment solutions targeting the global market, it is also necessary to take into account the engineering conditions and policy requirements of different regions. The following analyzes the core considerations for design and layout from seven key dimensions.

1. Raw Material Characteristics: Core Basis for Customized Design

The physical properties of rocks directly determine the core structural parameters of the equipment and are the primary prerequisite for design:
- Hardness and wear resistance: Hard rocks such as granite and basalt require enhanced equipment liner thickness and rotor strength, with high-chromium alloy materials used to improve wear resistance; soft rocks such as limestone can have optimized cavity structures to reduce equipment energy consumption;
- Moisture content and viscosity: Raw materials with high moisture content are prone to clogging. Anti-stick liners and vibration devices should be designed at the feed inlet, and installation space for drying or washing equipment should be reserved during layout;
- Particle gradation: Large raw stones (with particle size exceeding 1 meter) need to be equipped with primary crushing pre-equipment, while raw materials with a high proportion of fine particles should have enhanced screening system design and cyclic crushing path optimization.

2. Capacity Requirements: Balancing Efficiency and Economy

Capacity goals determine equipment specification selection and layout density, requiring avoidance of "overcapacity" or insufficient capacity issues:
- Hourly capacity positioning: Small and medium-sized projects with an hourly output of less than 50 tons can adopt integrated mobile crushing stations to reduce infrastructure investment; large-scale production lines with an hourly output of more than 200 tons need to design primary, secondary, and tertiary crushing units in stages to ensure capacity matching across all links;
- Peak load response: To cope with peak demand such as mine mining seasons, 10%-15% capacity redundancy should be reserved during design, and a modular structure should be adopted in the layout to facilitate later expansion;
- Diversity of finished product specifications: If multiple particle size aggregates need to be produced simultaneously, a multi-layer screening system and multi-channel discharge design should be adopted, with the shortest possible material flow path ensured during layout.

3. Site Conditions: Spatial Constraint Criteria for Layout Planning

The terrain, space, and geological conditions of different sites directly affect the layout form, requiring adaptation between equipment and the environment:
- Terrain constraints: Crawler-type mobile crushing equipment is preferred for mountainous or narrow sites, with a "step-by-step" layout adopted to realize gravity-driven material flow; fixed linear layouts can be used for open plain sites to improve operational convenience;
- Geological bearing capacity: Foundation bearing capacity calculations are required for heavy crushing equipment. Pile foundation reinforcement or lightweight equipment should be used for soft soil foundations, and centralized equipment placement should be avoided during layout to prevent ground settlement;
- Space size: For restricted spaces such as ports and factories, the equipment footprint should be optimized, with folding feed hoppers and compact transmission structures adopted, and equipment maintenance and material transportation channels (width not less than 3 meters) reserved.

4. Environmental Standards: Core Access Requirements for the Global Market

Environmental protection policies are becoming increasingly stringent worldwide, and the design and layout of crushing equipment must meet emission and noise reduction requirements:
- Dust control: The equipment's feed and discharge ports should be equipped with built-in sealing covers, and pulse bag filters or wet spray systems should be configured. During layout, dust removal equipment should be placed downstream of the dominant wind direction to reduce dust diffusion;
- Noise control: Low-noise motors and shock-absorbing bases are used in the design, with sound insulation liners installed inside the crushing cavity. During layout, the distance between the equipment and residential areas/offices should be controlled within the scope required by environmental standards (usually not less than 50 meters);
- Waste disposal: A solid waste recovery channel should be designed, with temporary waste storage areas and transportation paths reserved during layout to comply with waste disposal requirements in EU CE certification or US EPA standards.

5. Safety Norms: Bottom-Line Guarantee for Operation and Maintenance

Equipment design and layout must comply with internationally recognized safety standards (such as ISO 14001, OSHA regulations) to reduce operational risks:
- Operational safety: The equipment should be equipped with emergency stop buttons and infrared induction protection devices, with a protective grid installed at the feed inlet to prevent personnel from entering. During layout, the height of the operation platform should be reasonable (not exceeding 1.2 meters), with anti-slip pedals and protective railings installed;
- Maintenance safety: Key maintenance components (such as liners and bearings) should be designed with convenient disassembly structures. During layout, sufficient maintenance space (not less than 1.5 times the equipment width) should be reserved, with hoisting equipment installation points provided;
- Emergency channels: A two-way emergency channel should be set up in the production line layout, with a width of not less than 1.8 meters, to ensure the safe evacuation of personnel and equipment in emergency situations.

6. Energy Consumption and Cost: Core of Long-Term Operational Economy

Optimization of design and layout can significantly reduce energy consumption and operating costs, improving project profitability:
- Energy consumption optimization: Frequency conversion motors and intelligent load adjustment systems are used to automatically adjust power output according to material hardness. During layout, the principle of "high inlet and low outlet" is followed to realize gravity-driven material flow, reducing energy consumption of conveying equipment;
- Labor cost: An automated control system (such as PLC centralized control) is designed to reduce manual operation links. During layout, the control room is set in a location with a wide field of vision to realize centralized monitoring of multiple equipment;
- Accessory cost: Standardized and generalized wearing parts are designed to reduce accessory procurement and replacement costs. During layout, the wearing parts storage area is placed close to the equipment to shorten replacement time.

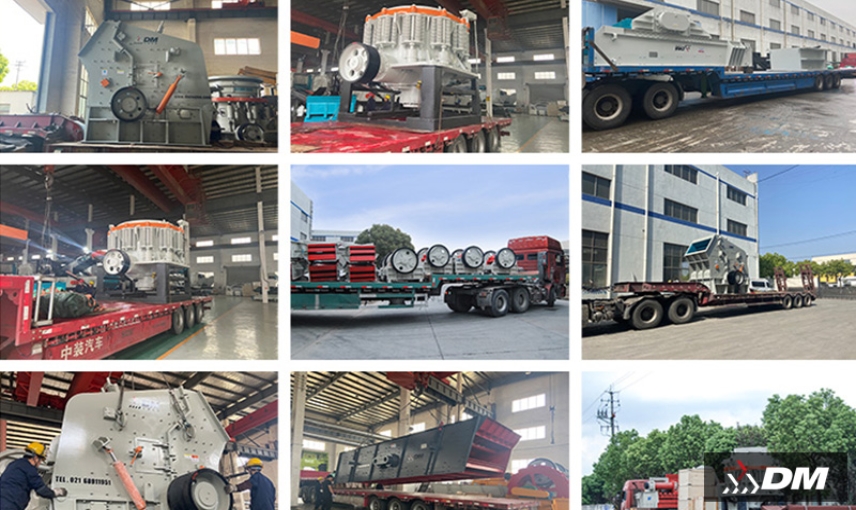

7. Transportation and Installation: Practical Considerations for Global Delivery

Crushing equipment targeting overseas markets must take into account transportation convenience and on-site installation efficiency:
- Transportation compatibility: The equipment design adopts a modular split structure, with the weight and size of a single module complying with container transportation standards (such as 20-foot and 40-foot container restrictions) to reduce overseas transportation costs;
- Quick installation: A flange-type quick connection structure and pre-assembled circuit system are adopted, with on-site installation time controlled within 72 hours. During layout, hoisting points and equipment positioning baselines are reserved;
- Localization adaptation: The electrical system is designed to adapt to the voltage standards of the target market (such as 380V/50Hz in Europe, 480V/60Hz in the United States), and local climate conditions are considered during layout (such as adding equipment heat dissipation devices in high-temperature areas).

In summary, the design and layout of crushing equipment is a systematic project that requires comprehensive consideration of multiple factors such as raw materials, capacity, environmental protection, and safety, combined with customized planning based on the specific needs of the target market. Whether meeting the low-cost needs of developing countries or adapting to the high-standard environmental protection requirements of developed countries, scientific design and layout can lay an efficient, stable, and economical operational foundation for the project, becoming a core advantage of crushing equipment enterprises in global market competition.
